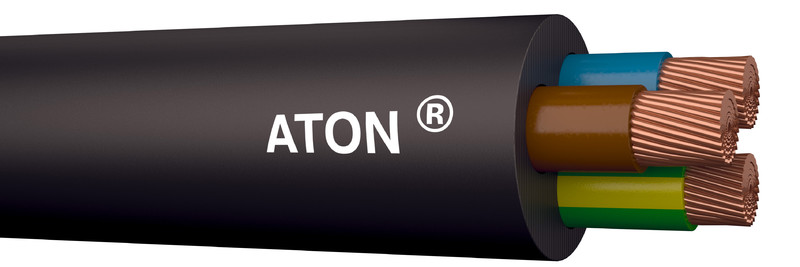

RUBBER CABLE ATON VSKB 3G1,5 R100
Product code
0420331
Oil-resistant self-extinguishing flexible cable; for light portable equipment in light operating conditions in dry, damp, wet, or fire-hazardous indoor and outdoor environments. Also suitable for locations requiring halogen-free rubber cables. The minimum recommended handling temperature is -50°C. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for moving application (EC003250)
Conductor materialCopper
Conductor surfaceBare
AWG sizeOther
Nominal cross section conductor1.5 mm²
Conductor categoryClass 5 = flexible
Conductor resistance at 20 °C13.3 Ohm/km
Number of cores3
Number of stranding elements1
Screen over stranding elementNone
Stranding elementNo
Screen over strandingNone
Material core insulationRubber
Specification core insulationRubber - ethylene propylene rubber (EPR)
Core identification according to HD 308 S2yes
Core identificationColour
Product codes
SAPABW541
STK0420331
PLC0420331
GTIN/EAN6410004203316
Manufacturer part number20078744
Vendor material number0420331
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.187 l
Package weight0.121 kg
Base unitMeter
Package units100 / 2400
Package contents–
UNSPSC31152109
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
