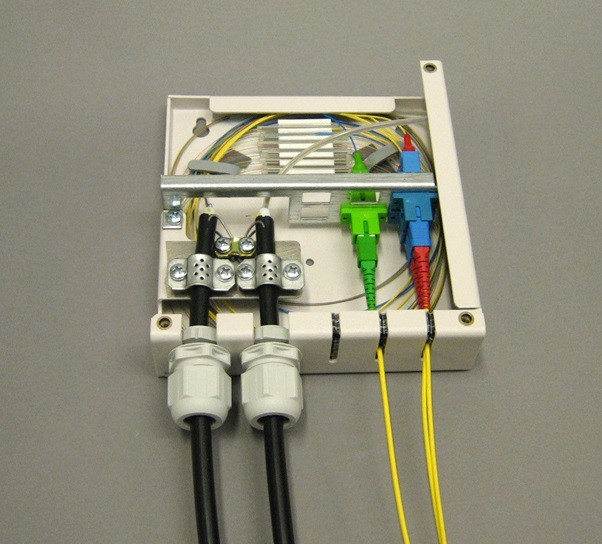

TERMINATION BOX PK-55
Product code
7260503
PK-55 Main Enclosure
FEATURES/USE
Small main enclosure for limited installation spaces, e.g., in household distribution boxes. The enclosure is also suitable as a standalone wall-mounted enclosure for terminating small fiber optic cables in dry indoor environments. Two cable entries. Capacity for 12 fiber splices. Accommodates 6 SC or LC-D adapters. When terminating center tube cables, fibers do not require protection with a protective sleeve. Maximum cable diameter: 13 mm. Mounting to wall with 3 screws.
BASE CONFIGURATION
Body and cover. Cable entry glands. Termination plate for securing two cables and grounding. Fiber splice holder for 12 fibers.
ACCESSORIES
Connectors, fiber pigtails, and splice protectors to be ordered separately.
DIMENSIONS
Width: 140 mm
Height: 155 mm
Depth: 40 mm
WEIGHT 0.9 kg
MATERIAL Powder-coated steel sheet This product description is an automated translation of the original Finnish description.
FEATURES/USE
Small main enclosure for limited installation spaces, e.g., in household distribution boxes. The enclosure is also suitable as a standalone wall-mounted enclosure for terminating small fiber optic cables in dry indoor environments. Two cable entries. Capacity for 12 fiber splices. Accommodates 6 SC or LC-D adapters. When terminating center tube cables, fibers do not require protection with a protective sleeve. Maximum cable diameter: 13 mm. Mounting to wall with 3 screws.
BASE CONFIGURATION
Body and cover. Cable entry glands. Termination plate for securing two cables and grounding. Fiber splice holder for 12 fibers.
ACCESSORIES
Connectors, fiber pigtails, and splice protectors to be ordered separately.
DIMENSIONS
Width: 140 mm
Height: 155 mm
Depth: 40 mm
WEIGHT 0.9 kg
MATERIAL Powder-coated steel sheet This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Data communication connection box fibre optic (EC001409)
Surface mountingyes
Flush-mounted installationno
Duct installationno
Floor box/subfloor mountedyes
Type of fasteningScrew
Type of connectorSC
ColourGrey
With label spaceyes
Wire stockyes
Outlet directionDownwards
Dust protection capNone
Device width140 mm
Device depth40 mm
Device height155 mm
Product codes
SAPCJP115
STK7260503
PLC7260503
GTIN/EAN6410072605036
Manufacturer part numberXCPSC01552
Vendor material number7260503
Basic information
Package measurements (L x W x H)210 x 160 x 50 mm
Package volume1.68 l
Package weight0.88 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC30161801
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
