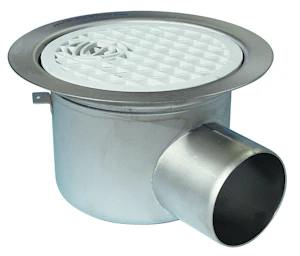

FLOOR DRAIN HORIZONTAL BIGG 110 P ACID PROOF/PP
Product code
3309122
The Bigg 110 P floor drain is a horizontal drain with an 110mm sewer connection that can be installed into a concrete structure. The delivery includes: a removable water trap, an automatic tightening ring, and a plastic cover. The floor drain is equipped with a protective cover that protects the drain during pouring. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Floor drain with 1 connection (EC010284)
Material floor drainStainless steel
With gridyes
Material gridPlastic
Diameter grid220 mm
ConnectionOther
Nominal diameterDN 100
Angle, inclined outlet90 °
Outer pipe diameter110 mm
Direction of outletHorizontal
Drainage capacity2.4 l/s
Product codes
SAPAAP468
HPAC3309122
PLC3309122
GTIN/EAN7394000300004
Manufacturer part number7102821
Vendor material number3309122
Basic information
Package measurements (L x W x H)385 x 288 x 200 mm
Package volume22.176 l
Package weight2.866 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141759
BrandPURUS
VendorVITAS GROUP OY
The country of origin stated by the supplierFinland
