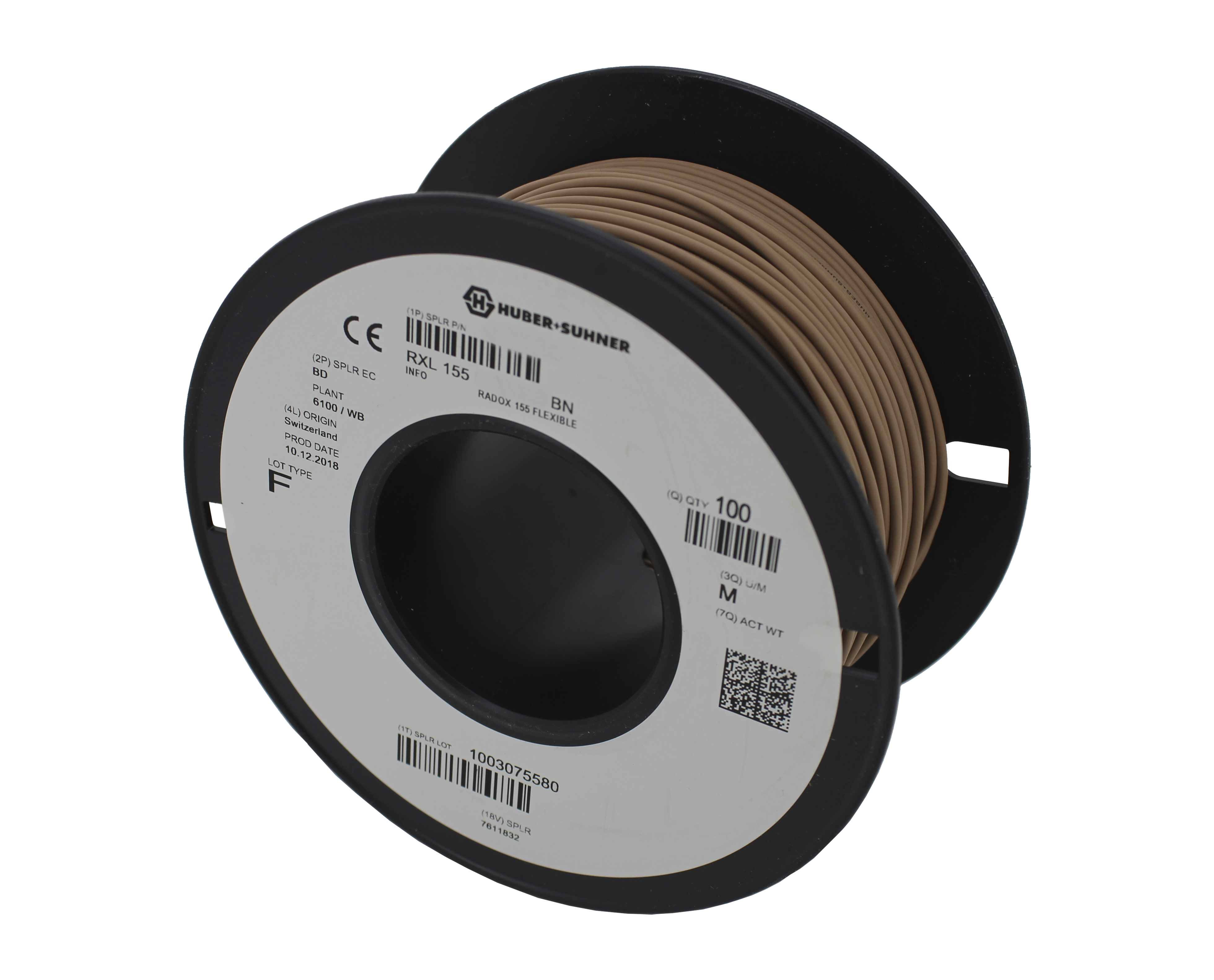

INSTALLATION LEAD RADOX 155 4 BROWN D100
Product code
9285079
Installation cable RADOX® 155 is a tinned fine-stranded (class 5) conductor. The operating temperature range is -55 °C to +155 °C. The nominal voltage of the conductor is U₀/U = 0.6/1 kV. Special properties of the RADOX® 155 cable include resistance to extremely cold and hot conditions as well as resistance to oil, weather, and UV radiation. The cable withstands wear, abrasion, and thermal stress well. RADOX® 155 is flexible and easy to strip. Applications include motors, electrical panels, and demanding wiring in machines and equipment. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceTinned
Nominal cross section conductor4 mm²
Conductor categoryClass 5 = flexible
Number of cores1
Material core insulationPolyolefin
Core identificationColour
Core colourBrown
Screenno
Drain wireno
Protective barrierNone
Armouring/reinforcementNone
Material outer sheathOther
Outer diameter approximate4.2 mm
Nominal voltage U0600 V
Product codes
SAPCGM337
STKCGM337
PLC9285079
GTIN/EAN6438056243593
Manufacturer part number12420126/D100
Vendor material numberCAR1550400M
Basic information
Package measurements (L x W x H)1000 x 4.2 x 4.2 mm
Package volume0.018 l
Package weight0.045 kg
Base unitMeter
Package units100 / 17500
Package contents–
UNSPSC26121543
BrandRADOX
VendorMIOTTI S.R.L.
