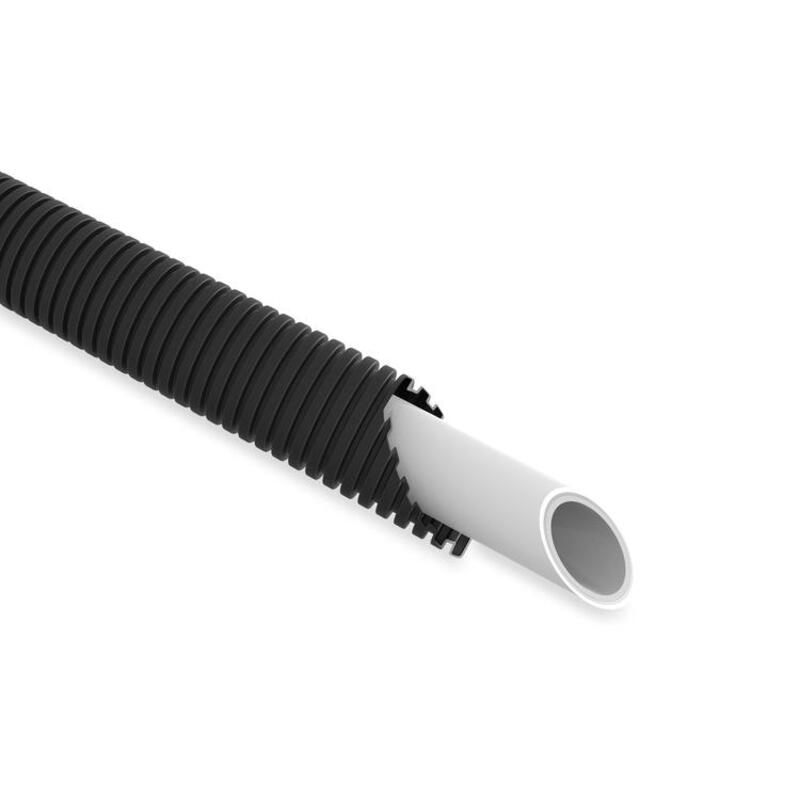

FLOOR HEATING PIPE RAUHEAT 25x2,3/34 R-I-R 25m PERT
Product code
2014886
PE-RT 5-layer supply pipe in a PE protective pipe with oxygen diffusion barrier (extruded EVOH layer) according to DIN 4726. The flexible and pliable material does not easily crack. Suitable for installation even under harsh conditions thanks to the 5-layer technology. Flexible and easy to install - can also be installed in cold conditions. Resistant to numerous chemicals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Multi-layered pipe, smooth (EC010225)
Material inner layerPolyethylene (PE)
Quality class inner layerPE-RT II
Material intermediate layerPlastic
Quality class intermediate layerEthylene vinyl alcohol (EVOH)
Material outer layerPolyethylene (PE)
Quality class outer layerPE-RT II
Number of layers5
Glass-fibre reinforcedno
Outer pipe diameter25 mm
Wall thickness2.3 mm
Medium temperature (continuous)70 - 70 °C
Max. medium temperature (momentarily)90 °C
Max. operating pressure at 20 °C6 bar
Max. operating pressure at max. medium temperature6 bar
Flexibleyes
Product codes
SAPCZH518
HPAC2014886
PLC2014886
GTIN/EAN6415820148865
Manufacturer part number2014886
Vendor material number2014886
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.046 l
Package weight0.015 kg
Base unitMeter
Package units25 / 300
Package contents–
UNSPSC40141914
BrandRAUHEAT
VendorRAUHEAT OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0525
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000468
