GEOTHERMAL PIPE RAUHEAT 75x4,5/110 100m PN10
Product code
2002104

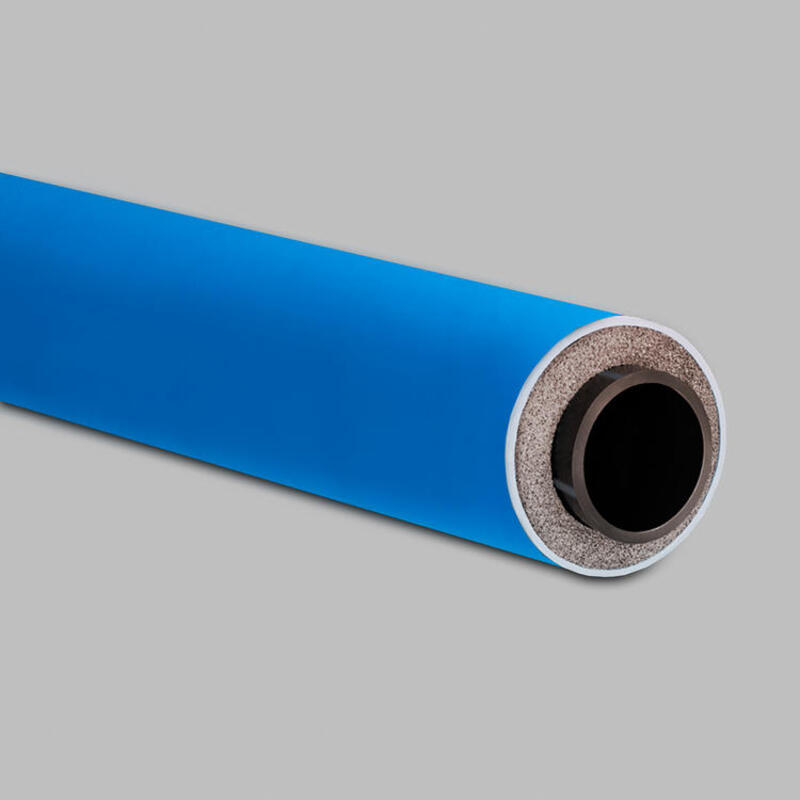

The RauHeat ground loop pipe is insulated and an ideal solution for horizontal connections between a borehole and a heat pump. The pipe's flexibility makes installation easy. The smooth protective sheath allows easy passage through building penetrations. Thanks to the pipe's lightweight and flexible structure, installation can be carried out by a single person.
The pipe delivery lengths are 50 and 100 meters. The spool height is only 1.6 meters, so transportation can be done with a parcel van. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pre-insulated plastic pipe (EC011704)
Number of inner pipes1
Material inner pipePE-100 RC
Diameter inner pipe75 mm
Wall thickness inner pipe4.5 mm
Colour inner pipeBlack
Outer diameter mantle pipe110 mm
Colour mantle pipeBlue
With heating cableno
Product codes
SAPDAC471
HPAC2002104
PLC2002104
GTIN/EAN6415820021045
Manufacturer part number2002104
Vendor material number2002104
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.121 l
Package weight0.03 kg
Base unitMeter
Package units100
Package contents–
UNSPSC40141914
BrandRAUHEAT
VendorRAUHEAT OY
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0828
GWP, unitMeter
Source for GWP dataEPD
