HEATING PIPE PEXFLEX ARCTIC 50+50/200
Product code
3011312
When you want to keep heat losses even lower, choose PexFlex Arctic. It retains the same structure as our standard pipe to ensure maximum installation flexibility.
PexFlex Arctic is known for its energy efficiency and easy installability. The corrugated protective jacket and soft-cell polyurethane foam form an exceptionally flexible structure for the product. Between the pipe's protective jacket and the polyurethane, a friction-reducing XPE cellular mat layer is installed, providing the product with approximately 40% greater flexibility.
The product's durable construction and safe, easy installability ensure a calculated service life of up to 50 years for pipelines.
The corrugated protective jacket and soft-cell polyurethane foam form an exceptionally flexible structure for the product.

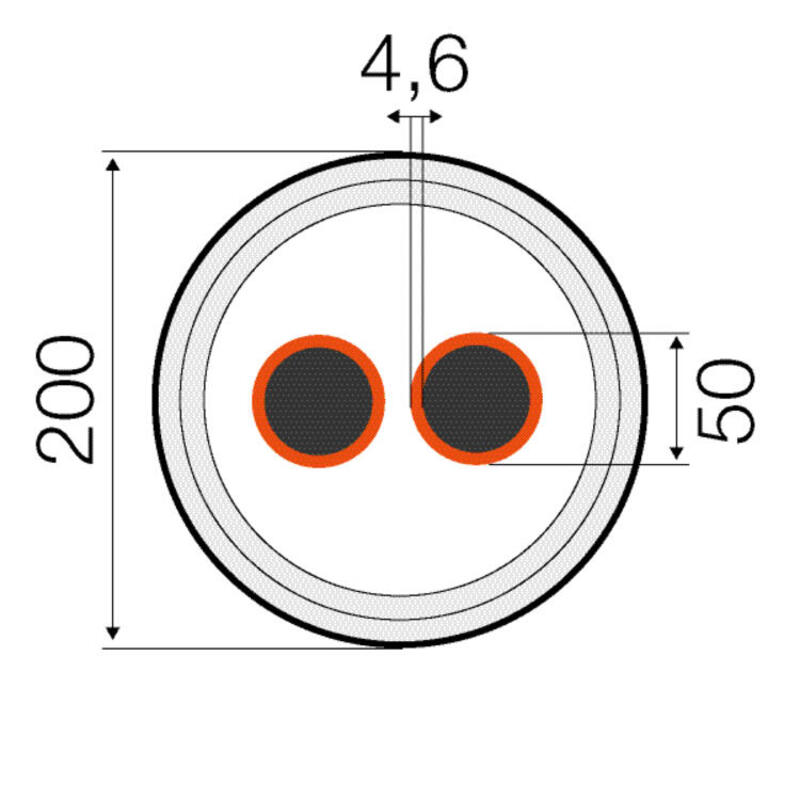

• Insulated twin-pipe heat pipe Ø25-63 mm
• Pressure class PN6
• Insulation material PUR
• Extremely energy efficient – when even lower heat losses are desired This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pre-insulated plastic pipe (EC011704)
Number of inner pipes2
Diameter inner pipe50 mm
Product codes
SAPDFO955
HPAC3011312
PLC3011312
GTIN/EAN6415830113129
Manufacturer part number3011312
Vendor material number3011312
Basic information
Package measurements (L x W x H)1000 x 200 x 200 mm
Package volume40 l
Package weight4 kg
Base unitMeter
Package units1 / 145
Package contents–
UNSPSC40141914
BrandRAUHEAT
VendorRAUHEAT OY
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)15.08
GWP, unitMeter
Source for GWP dataEPD
