HEATING PIPE PEXFLEX ARCTIC 63/175
Product code
3011315
When you want to keep heat losses even lower, choose PexFlex Arctic. It has the same structure as our standard pipe, ensuring maximum flexibility during installation.
PexFlex Arctic is known for its energy efficiency and ease of installation. The corrugated protective jacket and soft-cell polyurethane foam form an extremely flexible structure for the product. A friction-reducing XPE cellular mat layer is installed between the pipe's protective jacket and the polyurethane, giving the product approximately 40% more flexibility. The durable construction and safe, easy installation ensure a calculated service life of up to 50 years for the pipelines.

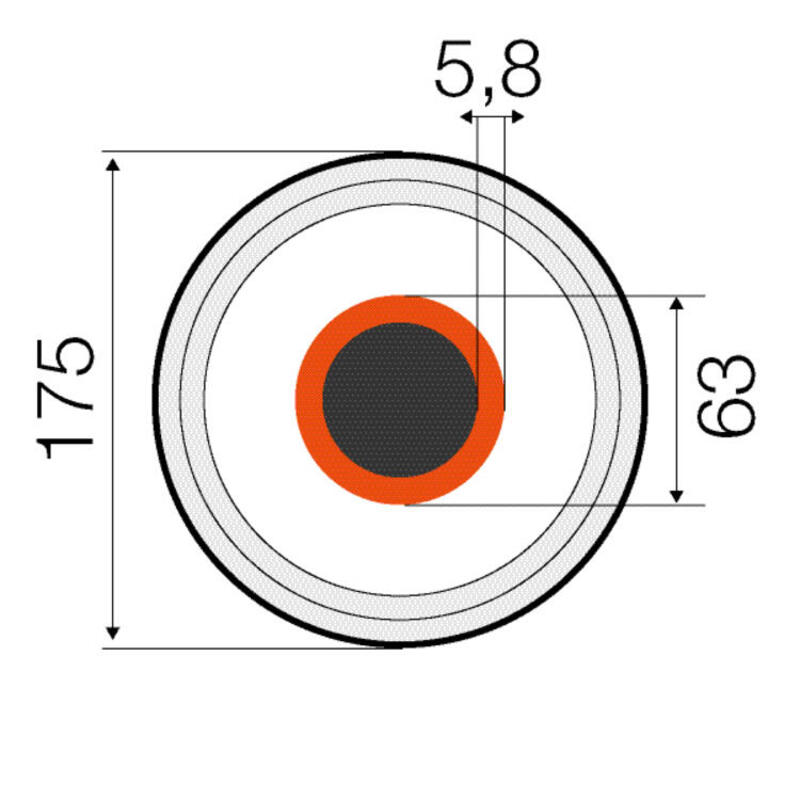

• Insulated single-pipe heat pipe Ø40-110 mm
• Pressure class PN6
• Insulation material: PUR
• Extremely energy efficient – for even lower heat losses This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pre-insulated plastic pipe (EC011704)
Number of inner pipes1
Diameter inner pipe63 mm
Product codes
SAPDFO957
HPAC3011315
PLC3011315
GTIN/EAN6429810730091
Manufacturer part number3011315
Vendor material number3011315
Basic information
Package measurements (L x W x H)1000 x 175 x 175 mm
Package volume30.625 l
Package weight3.25 kg
Base unitMeter
Package units1 / 150
Package contents–
UNSPSC40141914
BrandRAUHEAT
VendorRAUHEAT OY
Documents (11)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)12.2525
GWP, unitMeter
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
