HEATING PIPE PEXFLEX PLUS 90/175mm UNO PN6
Product code
3011180
PexFlex PLUS is our standard pipe and meets the energy efficiency requirements of most projects.
PexFlex Plus is known for its energy efficiency and ease of installation. The corrugated protective jacket and soft-cell polyurethane foam form an extremely flexible structure. Between the pipe's protective jacket and the polyurethane, a friction-reducing XPE cellular mat layer is installed, providing approximately 40% more flexibility. The durable construction and safe, easy installation ensure a calculated service life of up to 50 years for the pipeline.
• Insulated single-pipe system Ø25-125 mm
• Pressure class PN6
• Insulation material PUR
• Energy efficient – meets the requirements of most applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pre-insulated plastic pipe (EC011704)
Number of inner pipes1
Material inner pipeOther

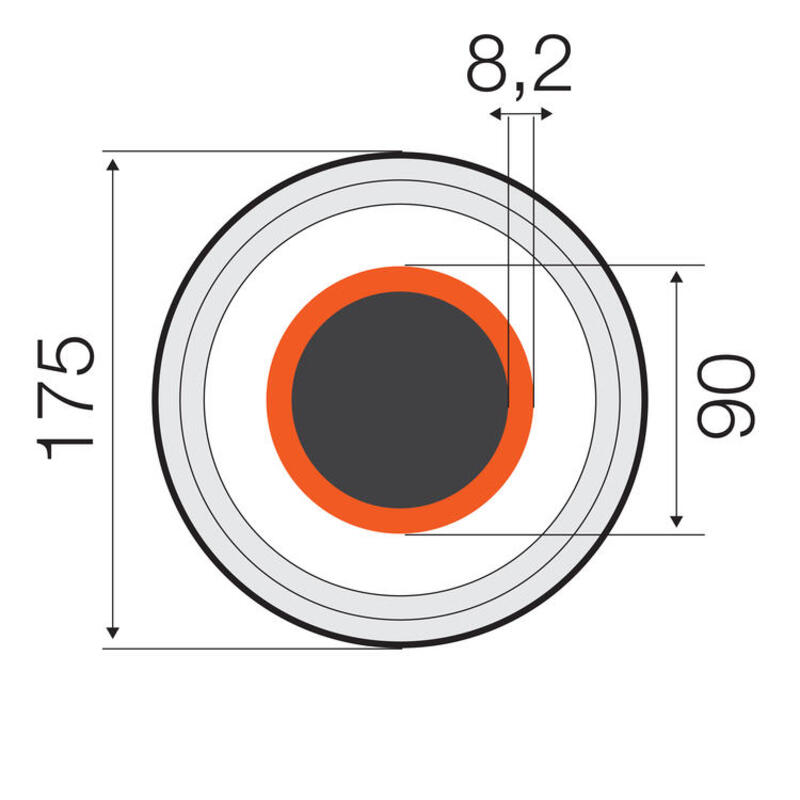

Diameter inner pipe90 mm
Wall thickness inner pipe8.2 mm
Colour inner pipeOther
With mantle pipeno
Insulating materialPolyurethane (PUR)
Ring stiffness classSN8
Max. medium temperature (continuous)80 °C
Product codes
SAPANK920
HPAC3011180
PLC3011180
GTIN/EAN6415830111415
Manufacturer part number3011180
Vendor material number3011180
Basic information
Package measurements (L x W x H)1000 x 160 x 160 mm
Package volume25.6 l
Package weight3.9 kg
Base unitMeter
Package units150
Package contents–
UNSPSC40141914
BrandRAUHEAT
VendorRAUHEAT OY
Documents (9)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)13.65
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000468
