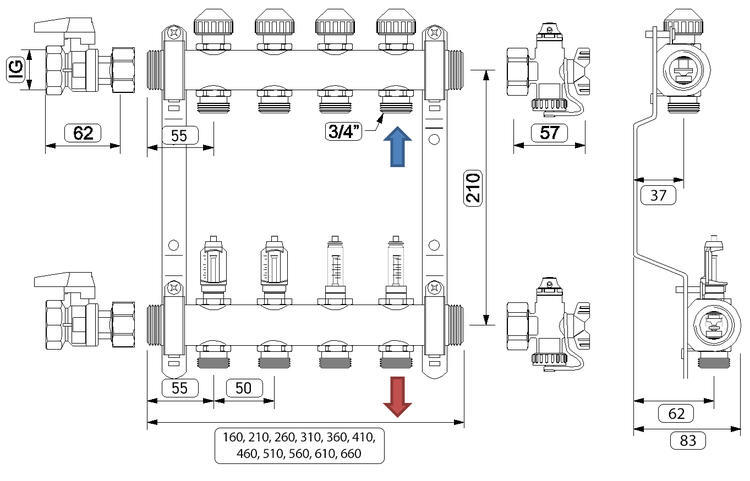

MANIFOLD RAUHEAT 5 ZONE
Product code
2012860
High-quality RST distribution manifolds with flow meters. 1" main blocks ensure sufficient flow performance even in highly demanding applications. Each manifold features circuit-specific adjustments and flow meters, with a total flow rate of up to 2000 l/h.
• Precisely adjustable and high-quality stainless steel RST manifold with flow meters
• Circuit-specific adjustments and flow meters
• Available in 2 to 12 circuits
• 1" main blocks ensure sufficient flow performance even in highly demanding applications
• Expand the number of circuits with additional circuits, manifold connectors, or additional manifold pairs up to 16 circuits
• Complete installation with separately sold manifold cabinet
• Delivery includes end caps This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Manifold for hydronic circuits (EC010292)
Connection type primary side2-pipe
Suitable for coolingyes
MaterialStainless steel
Position primary connectionLeft/right
Primary connectionExternal thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Nominal diameter primary connection1 inch (25)
With valves on primary connectionno
With mixing valveno
Expandableyes
Max. number of expansion groups5
With non-return valveno
With circulation pumpno
With thermometerno
With de-aerationyes
Nominal diameter secondary connection3/4 inch (20)
Product codes
SAPCZH415
HPAC2012860
PLC2012860
GTIN/EAN6415820128607
Manufacturer part number2012860
Vendor material number2012860
Basic information
Package measurements (L x W x H)93 x 310 x 310 mm
Package volume8.937 l
Package weight3.21 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141761
BrandRAUHEAT
VendorRAUHEAT OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)11.235
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000468
