NUB PANEL RAUHEAT 30mm EPS 1400x800mm 1,12m2
Product code
2014864

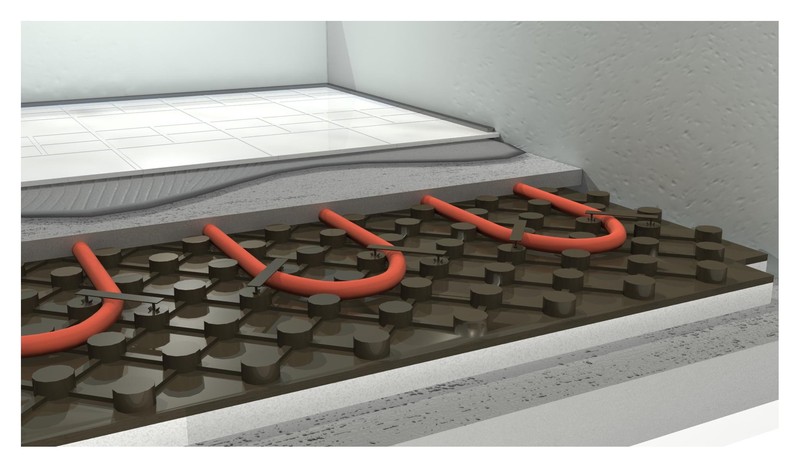

Convenient stud plate with EPS insulation to facilitate the installation of underfloor heating. The stud plate is suitable for pipe installation on various substrates. The pipe remains in place between the studs and no separate pipe fixation is required. The plate thickness is 30mm.
• Plate size 800mm x 1400mm x 30mm This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Underfloor heating plate (EC011767)
Studded panelyes
Tacker plateno
Inlay plateno
Hook-and-loop fasteningno
With foilno
With heat-conducting plateno
Heat resistance Rd0.75 (m².K)/W
Thermal conductivity according to EN 126640.04 W/(m.K)
Noise attenuation28 dB(A)
Width800 mm
Length1400 mm
Insulation thickness30 mm
Suitable for pipe diameter16 - 16 mm
With impact sound insulationyes
Rollableno
Product codes
SAPCZH401
HPAC2014864
PLC2014864
GTIN/EAN6415820148643
Manufacturer part number2014864
Vendor material number2014864
Basic information
Package measurements (L x W x H)1400 x 52 x 800 mm
Package volume58.24 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC31162307
BrandRAUHEAT
VendorRAUHEAT OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.75
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000468
