NUB PANEL RAUHEAT WITHOUT INS. 1400x800mm 1,12m2
Product code
2014938

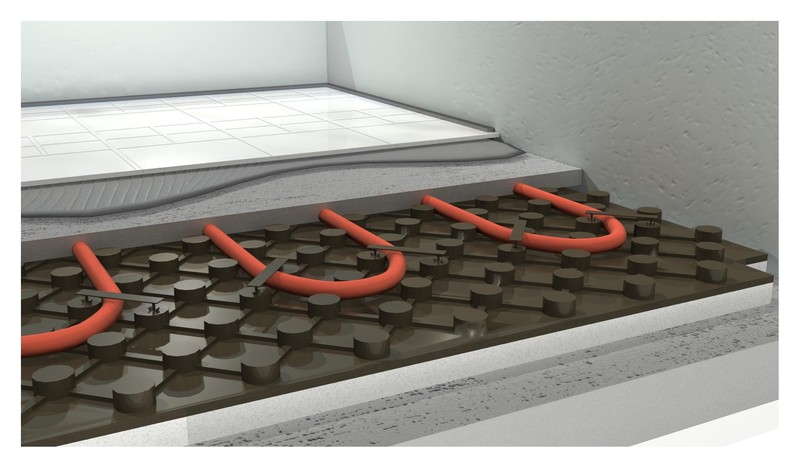

Convenient stud plate without EPS insulation to facilitate the installation of underfloor heating. The stud plate is suitable for pipe installation on various substrates. The pipe is held in place between the studs and no separate pipe fixation is required.
• Plate size 800mm x 1400mm This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Underfloor heating plate (EC011767)
Studded panelyes
Tacker plateno
Inlay plateno
Hook-and-loop fasteningno
With foilno
With heat-conducting plateno
Width800 mm
Length1400 mm
Suitable for pipe diameter16 - 16 mm
With impact sound insulationno
Rollableno
Foldableno
Product codes
SAPCZH399
HPAC2014938
PLC2014938
GTIN/EAN6415820149381
Manufacturer part number2014938
Vendor material number2014938
Basic information
Package measurements (L x W x H)1400 x 21 x 800 mm
Package volume23.52 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC31162307
BrandRAUHEAT
VendorRAUHEAT OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.75
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000468
