HEATING CABLE PLUG ETL FROSTGUARD 2 M,SELF REG.
Product code
8169302

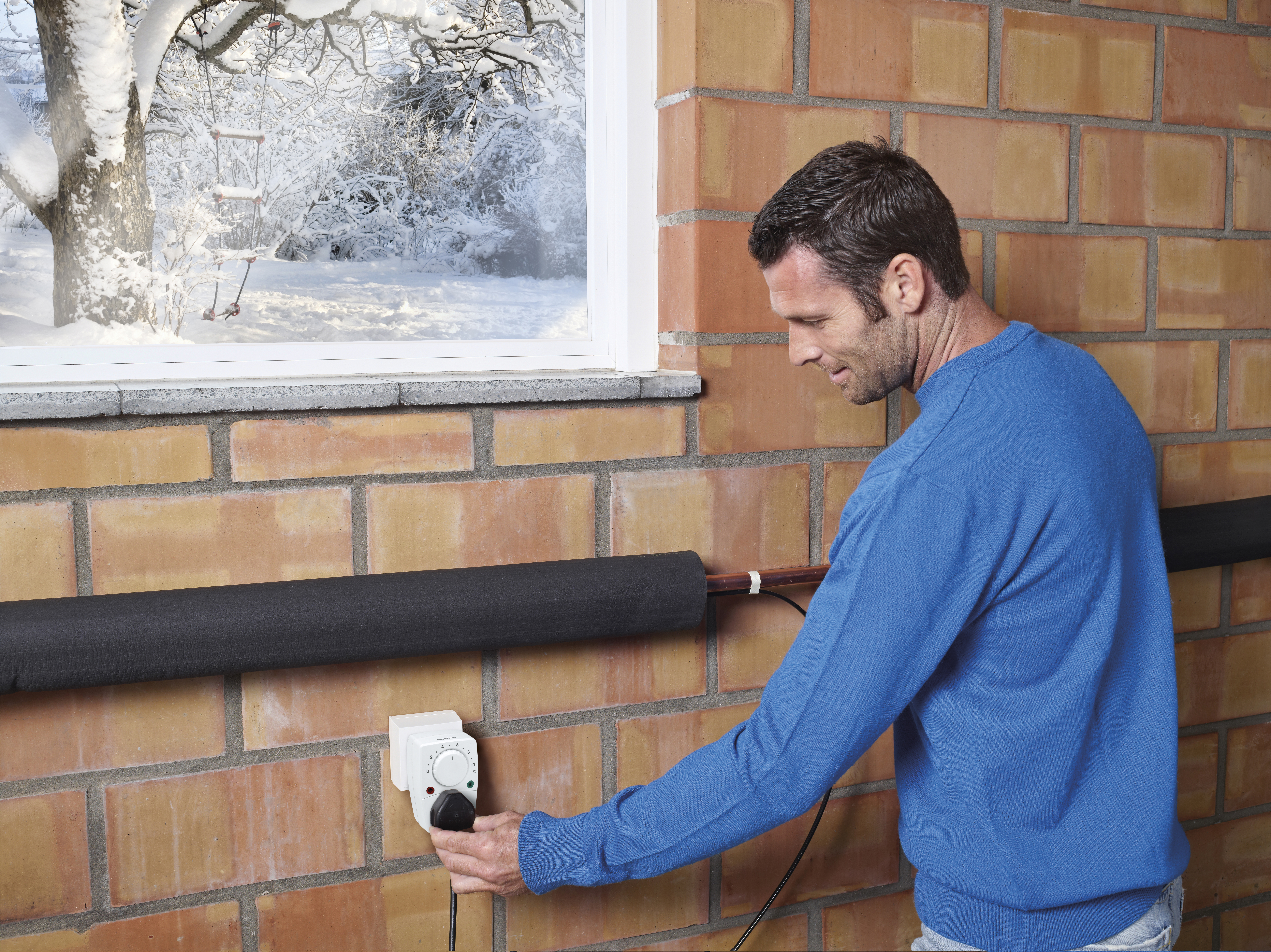

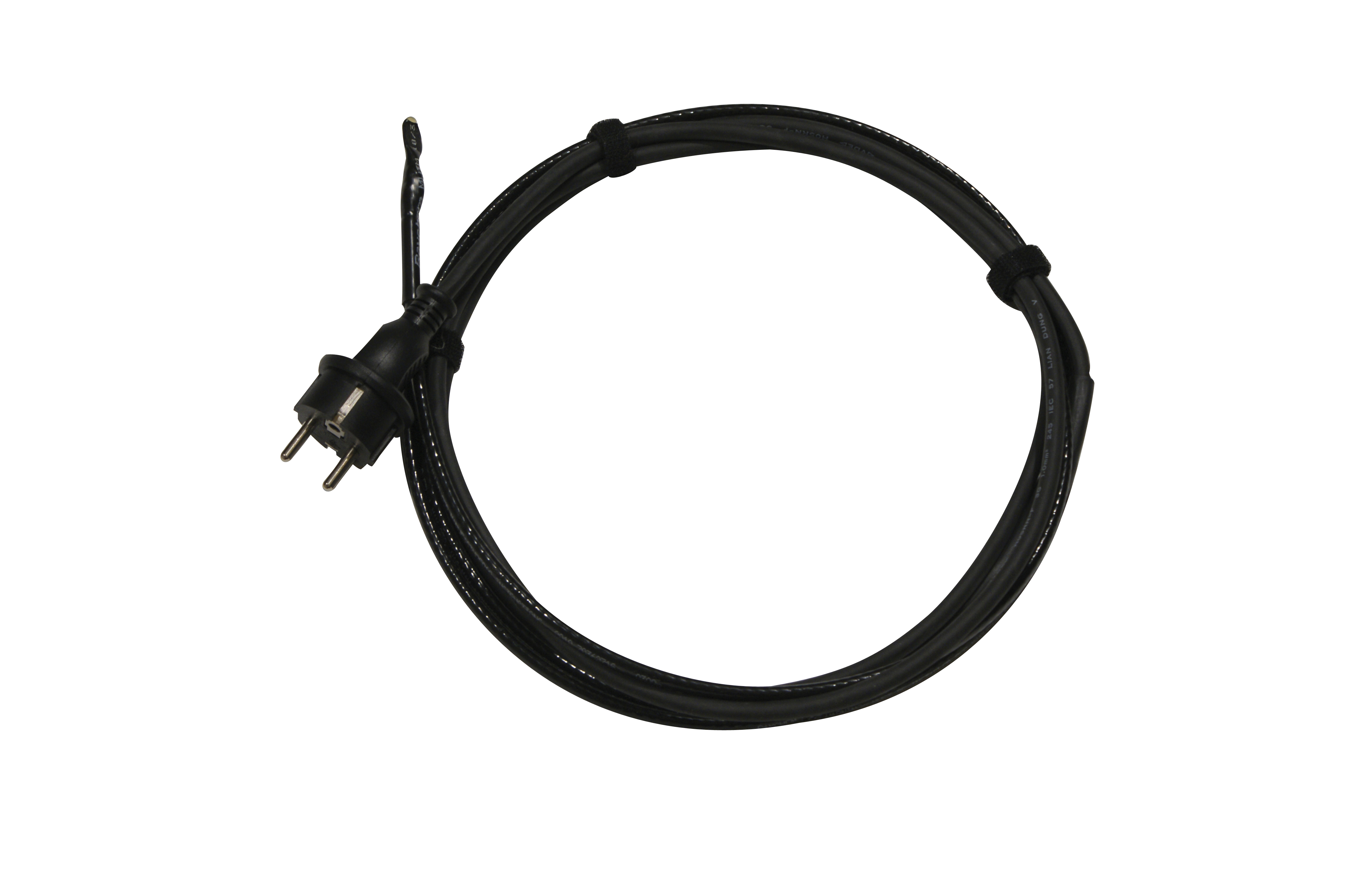

nVent RAYCHEM FrostGuard is a ready-to-use package for pipe freeze protection. The package includes a pre-terminated ETL heat cable with a pre-attached 2-meter cold lead and a grounded plug (IP44). Suitable for potable water freeze protection.
Features
- self-regulating heat cable
- installation on and inside pipes
- approved for potable water
- pre-terminated with 2 m cold lead and plug
- pressure penetration available separately, can be installed later over the end termination
- 10 W/m (+5 °C) on pipe surface
- 20 W/m (+5 °C) in water inside pipe.
The cable is available in lengths of 2, 4, 6, 8, 10, 13, 16, 19, 22, and 25 m.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Cable typeDual core
Constant powerno
Self-limitingyes
Nominal voltage230 V
Max. hold temperature65 °C
Heating capacity10 W/m
ScreeningBraiding
Material screeningCopper
Surface treatment screeningOther
Diameter0 mm
Height5.8 mm
Width8.5 mm
Length2 m
ColourBlack
ApplicationPipe heating
Product codes
SAPABB299
HPAC1847076
STK8169302
PLC8169302
GTIN/EAN7330957000307
Manufacturer part numberFROSTGUARD 2M
Vendor material number8169302
Basic information
Package measurements (L x W x H)320 x 80 x 310 mm
Package volume7.936 l
Package weight0.58 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC26121501
BrandRAYCHEM (CHEMELEX)
VendorCHEMELEX FINLAND OY
