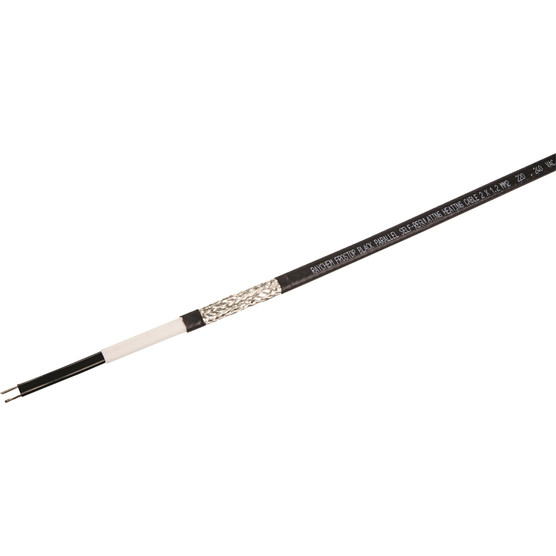

SELF REG. HEATING CABLE FROSTOP BLACK PIPES AND GUT.
Product code
0431118
Self-regulating operation saves energy by automatically increasing or decreasing heating power according to conditions (28 W/m in ice water and 16 W/m at air temperature of 0 °C). The intelligent EMDR-10 control unit turns on the heating cable only when needed: after detecting low temperature and humidity.
Features
- Copper conductor (1.2 mm²)
- Self-regulating heating element
- Insulation made of modified polyolefin
- Tinned copper braid
- UV-resistant outer jacket
Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Cable typeDual core
Constant powerno
Self-limitingyes
Nominal voltage230 V
Max. hold temperature65 °C
Heating capacity18 W/m
ScreeningBraiding
Material screeningCopper
Surface treatment screeningTinned
Height10.5 mm
Width5.5 mm
Length305 m
ColourBlack
ApplicationGutter/roof
Product codes
SAPABB291
STK0431118
PLC0431118
GTIN/EAN5017455006476
Manufacturer part numberFROSTOP BLACK
Vendor material number0431118
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.133 l
Package weight0.102 kg
Base unitMeter
Package units1 / 305
Package contents–
UNSPSC26121601
BrandRAYCHEM (CHEMELEX)
VendorCHEMELEX FINLAND OY
