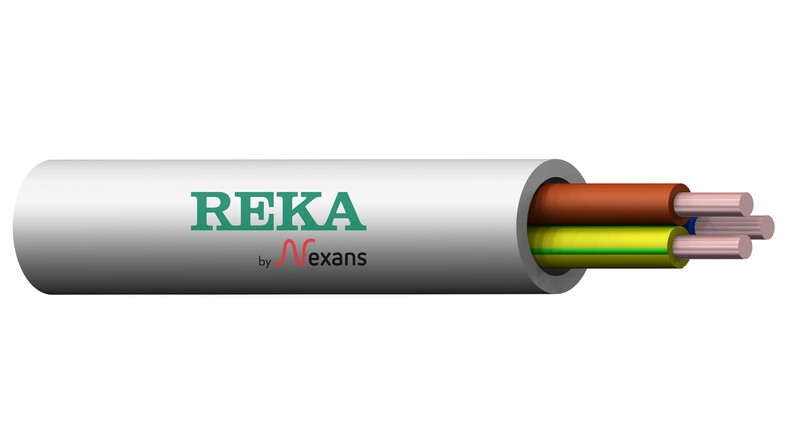

INSTALLATION CABLE-HF EQQ-D HELPPO 3G2,5 MK500 Dca
Product code
0409166
Installation cable for fixed indoor and outdoor installation. Do not bury in the ground or directly in concrete pours. Can be embedded in a grout-filled groove. The cable has UV-protected insulation and sheath materials. Installation must be carried out in accordance with national regulations and standards. The cable is halogen-free and flame-retardant in CPR class Dca-s2,d2,a2. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
Conductor categoryClass 1 = solid
Number of cores3
Twisted coresyes
Material core insulationPolyolefin
Core identification according to HD 308 S2yes
Core identificationColour
Core colourSeveral
With protective conductoryes
Max. permitted conductor temperature70 °C
Screenno
Drain wireno
Lead sheathno
Product codes
SAPDMW140
STK0409166
PLC0409166
GTIN/EAN6438176310717
Manufacturer part number1254793-5M
Vendor material number0409166
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.338 l
Package weight0.138 kg
Base unitMeter
Package units500
Package contents–
UNSPSC26121641
BrandREKA BY NEXANS
VendorREKA KAAPELI OY
The country of origin stated by the supplierFinland
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1013
GWP, unitMeter
Source for GWP dataEPD
