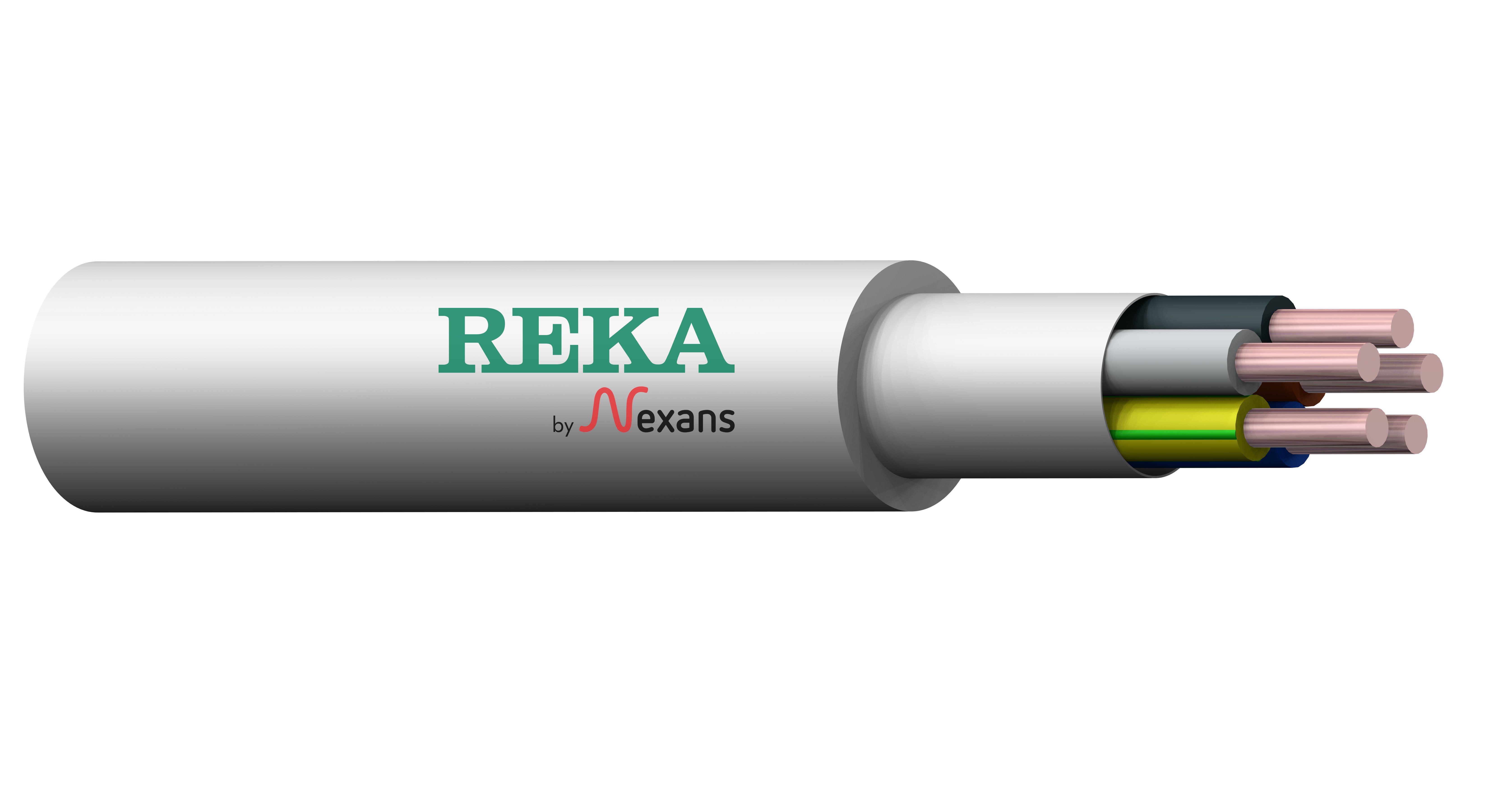

ISTALLATION CABLE-HF EQQ LiteRex 5G2,5 D200 Dca
Product code
0456571
No product description available.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
AWG size14
Nominal cross section conductor (AWG)2.08 kcmil
Diameter conductor1.74 mm
Conductor categoryClass 1 = solid
Number of cores5
Twisted coresno
Material core insulationPolyolefin
Specification core insulationPolyethylene (PE)
Core identificationColour
Core colourSeveral
Max. permitted conductor temperature70 °C
Screenno
Product codes
SAPCGM611
STK0456571
PLC0456571
GTIN/EAN6438176224076
Manufacturer part number1254735-3
Vendor material number0456571
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.28 l
Package weight0.204 kg
Base unitMeter
Package units200 / 2400
Package contents–
UNSPSC26121500
BrandREKA BY NEXANS
VendorREKA KAAPELI OY
Documents (1)
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.3056
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
