INSULATED HANGER ROCKWOOL TECLIT HANGER 22-20

Product code
3234202

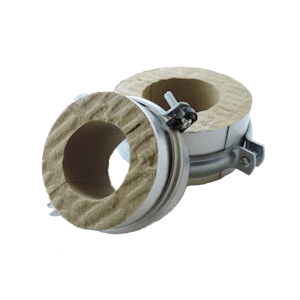

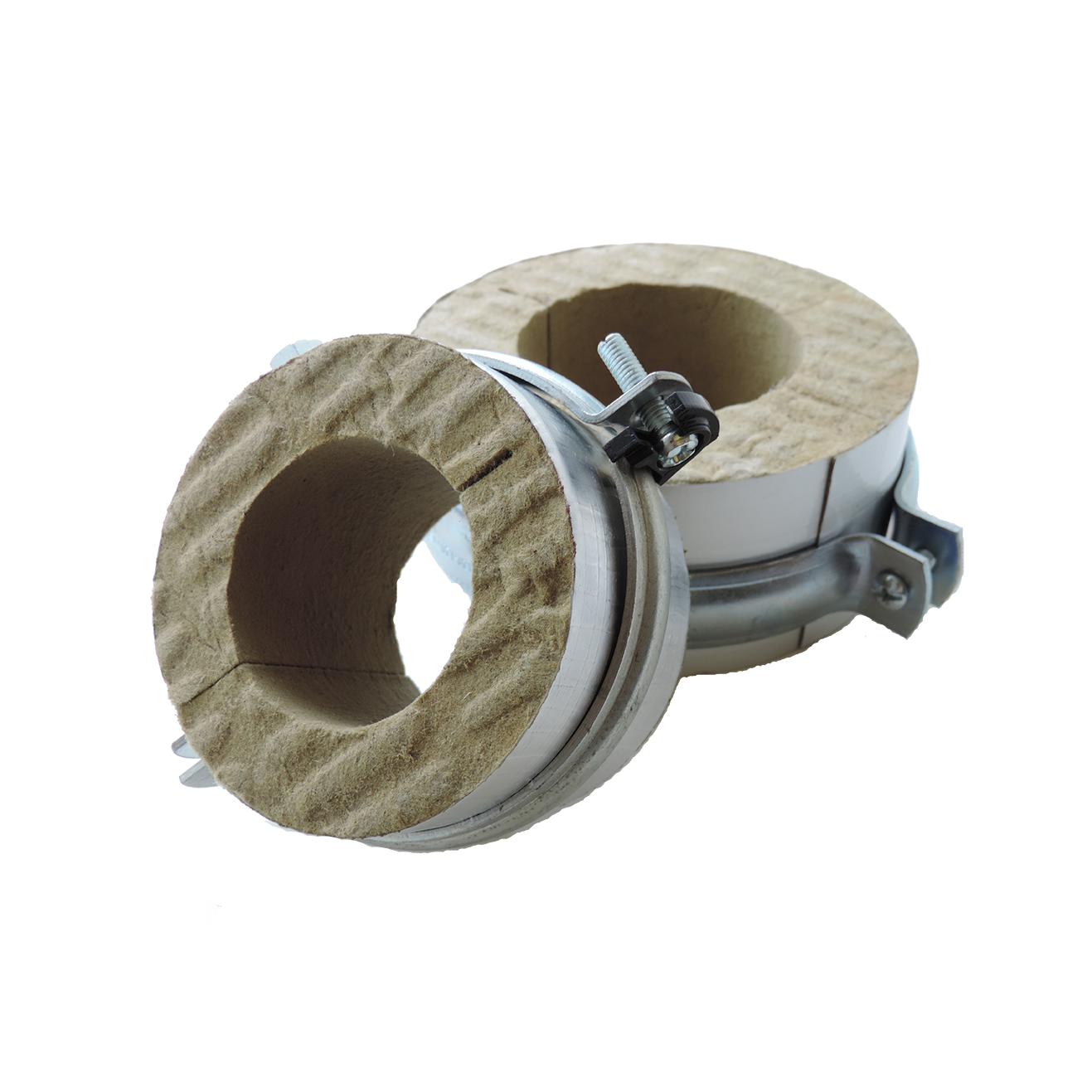

Teclit Hanger is a fire-safe pipe support suitable for both hot and cold pipes. The supports are specifically designed to minimize heat loss caused by pipe supports. Teclit Hanger pipe supports can be installed vertically and horizontally on building services pipe insulation applications. The Teclit Hanger pipe support consists of two parts: an insulation sleeve and a pipe support. The insulation sleeve withstands high loads from both inside and outside and is coated with reinforced aluminum laminate equipped with a self-adhesive sealing tape. The support features M8 and M10 threading. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Cold-bridge-free bracket (EC010220)
Material clampOther
Nominal diameterDN 20
Outer pipe diameter22 mm
Connection facilityExternal thread
Connection size, connection facilityM8/M10
With foamed-in bracketno
Insulation thickness20 mm
Insulation length80 mm

Product codes

SAPDCY191
HPAC3234202
PLC3234202
GTIN/EAN7050780639702
Manufacturer part number289770
Vendor material number289770

Basic information

Package measurements (L x W x H)80 x 102 x 62 mm
Package volume0.506 l
Package weight0.2 kg
Base uniteach
Package units1
Package contents
UNSPSC30141505
BrandROCKWOOL
VendorROCKWOOL FINLAND OY

Documents (3)

Brochures & documents

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)0.12
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000245
