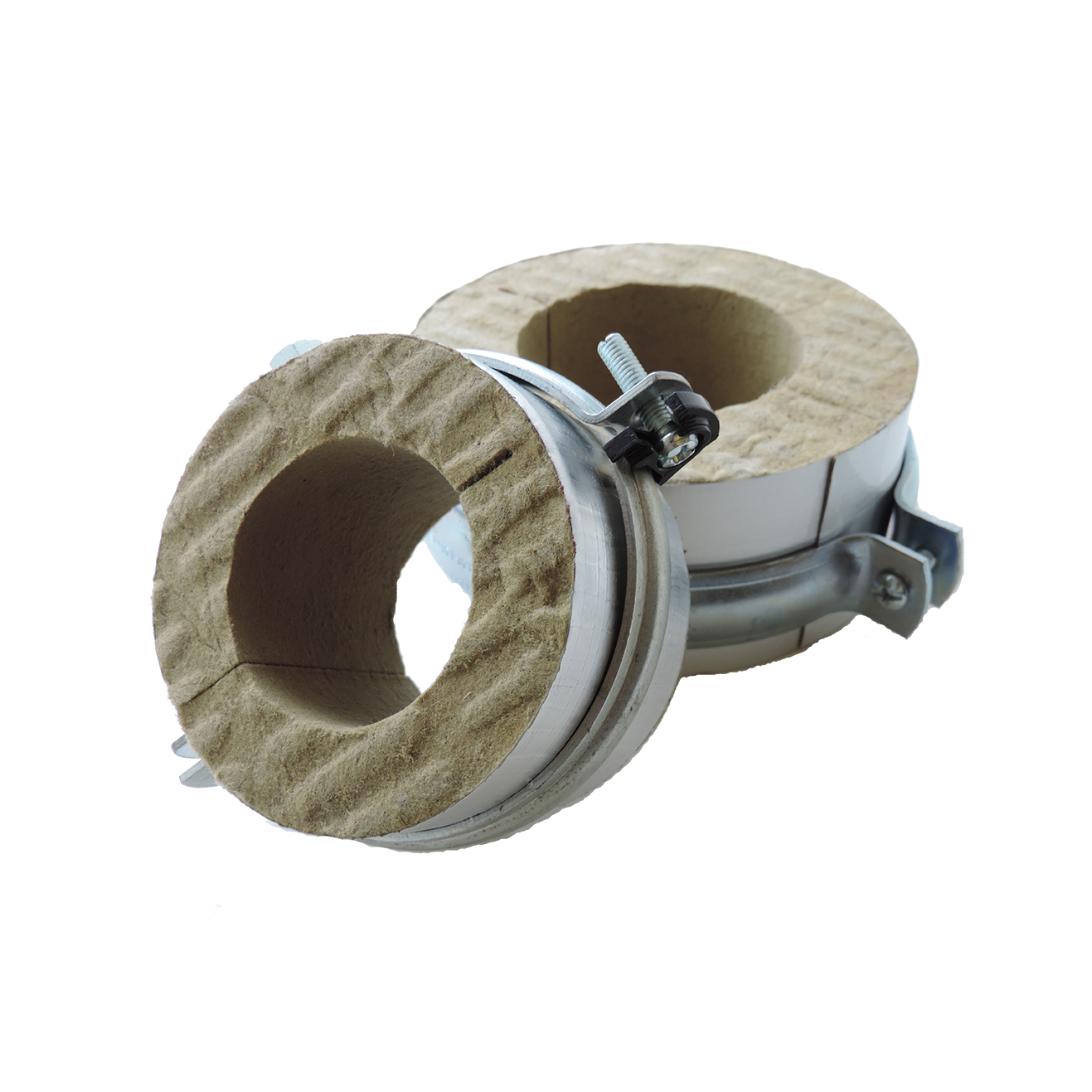

INSULATED HANGER ROCKWOOL TECLIT HANGER 22-30
Product code
3234214
Teclit Hanger is a fire-safe pipe support suitable for both hot and cold pipes. The supports are specifically designed to minimize heat loss caused by pipe supports. Teclit Hanger pipe supports can be installed vertically and horizontally on building services pipe insulation applications. The Teclit Hanger pipe support consists of two parts: an insulation sleeve and a pipe support. The insulation sleeve withstands high loads from both inside and outside and is coated with reinforced aluminum laminate equipped with a self-adhesive sealing tape. The support features M8 and M10 threading. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cold-bridge-free bracket (EC010220)
Material clampOther
Nominal diameterDN 20
Outer pipe diameter22 mm
Connection facilityExternal thread
Connection size, connection facilityM8/M10
With foamed-in bracketno
Insulation thickness30 mm
Insulation length80 mm
Product codes
SAPDCY203
HPAC3234214
PLC3234214
GTIN/EAN7050780639726
Manufacturer part number289772
Vendor material number289772
Basic information
Package measurements (L x W x H)80 x 122 x 82 mm
Package volume0.8 l
Package weight0.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC30141505
BrandROCKWOOL
VendorROCKWOOL FINLAND OY
Documents (3)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.18
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000245
