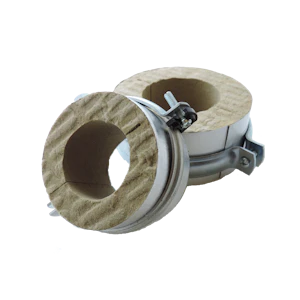

INSULATED HANGER ROCKWOOL TECLIT HANGER 76-20
Product code
3234210
Teclit Hanger is a fire-safe pipe support suitable for both hot and cold pipes. The supports are specifically designed to minimize heat loss caused by pipe supports. Teclit Hanger pipe supports can be installed vertically and horizontally on building services pipe insulation applications. The Teclit Hanger pipe support consists of two parts: an insulation sleeve and a pipe support. The insulation sleeve withstands high loads from both inside and outside and is coated with reinforced aluminum laminate equipped with a self-adhesive sealing tape. The support features M8 and M10 threading. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cold-bridge-free bracket (EC010220)
Material clampOther
Nominal diameterDN 65
Outer pipe diameter76 mm
Connection facilityExternal thread
Connection size, connection facilityM8/M10
With foamed-in bracketno
Insulation thickness20 mm
Insulation length80 mm
Product codes
SAPDCY199
HPAC3234210
PLC3234210
GTIN/EAN7050780640210
Manufacturer part number289895
Vendor material number289895
Basic information
Package measurements (L x W x H)80 x 156 x 116 mm
Package volume1.448 l
Package weight0.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC30141505
BrandROCKWOOL
VendorROCKWOOL FINLAND OY
Documents (3)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.24
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000245
