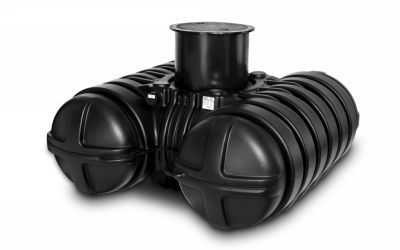

RAINWATER DELAY TANK 5000 100
Product code
2620803
The detention tank volume for stormwater is 5000 l and the rainwater detention is 100%. The Roth stormwater detention tank is equipped with a manhole and a lid. Inside the stormwater tank, there is a float that controls the valve and the outflow rate. The tank's outflow rate is between 0.07-0.5 l/s depending on the rainfall amount.
All necessary components are located inside the tank, so the loading space is optimized and no additional load space is required. The components are also protected during transport.
Roth Twinbloc® rainwater and stormwater detention tanks are available with either 50% or 100% detention. By selecting a 50% detention volume, half of the tank's capacity can be used for stormwater detention and the rest for the property's rainwater needs, such as garden irrigation or car washing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Rainwater system (EC003481)
MaterialPolyethylene (PE)
Volume5 m³
ConstructionTubular shape
Length2460 mm
Width2350 mm
Height1350 mm
Weight195 kg
Product codes
SAPCPU659
HPAC2620803
PLC2620803
GTIN/EAN4037115054440
Manufacturer part number17RW1000.147
Vendor material number17RW1000.147
Basic information
Package measurements (L x W x H)2640 x 2350 x 1350 mm
Package volume8375.4 l
Package weight195 kg
Base uniteach
Package units1
Package contents–
UNSPSC47101523
BrandROTH
VendorROTH FINLAND OY
Documents (5)
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)2
RecyclableYes
Recycled content of plastic used in the product (%)100
