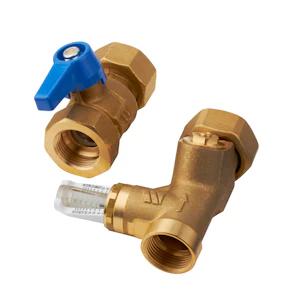

ROTH INNREG.-VENTILSETT 4-36 L/MIN
Product code
2070524
Control valve for floor heating distribution manifold This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Housing materialBrass
Material qualityDezincification resistant brass (DZR)
Material ballBrass
Nominal diameter connection 11 inch (25)
Outer pipe diameter connection 125 mm
Connection 1Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
Nominal diameter connection 21 inch (25)
Outer pipe diameter connection 225 mm
Connection 2Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
With filterno
With thermometerno
ModelStraight
With insulation shellno
Max. pressure difference at 20 °C6 bar
Medium temperature (continuous)70 - 70 °C
Product codes
SAPGCI960
HPAC2070524
PLC2070524
GTIN/EAN5702000103655
Manufacturer part number17401973.818
Vendor material number2070524
Basic information
Package measurements (L x W x H)150 x 110 x 100 mm
Package volume1.65 l
Package weight0.79 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141609
BrandROTH
VendorROTH FINLAND OY
