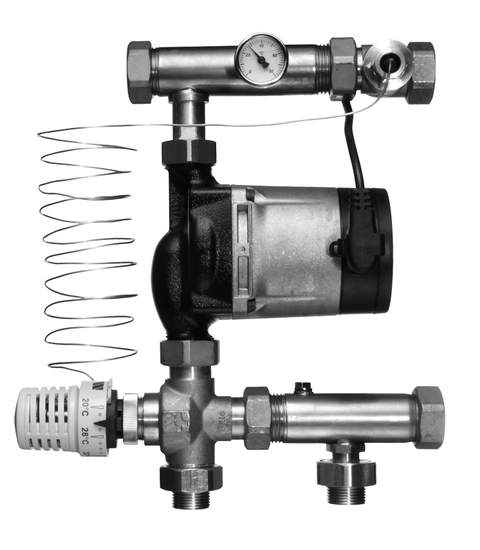

SHUNT UNIT ROTH 15/60
Product code
2070539
The Roth mixing group equipped with a 3-way valve is used together with the Roth floor heating distributor.
Features
- can be adapted to the desired number of circuits
- maximum capacity 230 m²
- Wilo Para 15-130 pump
- can be installed on the right or left side of the floor heating distributor
Product details
Technical specifications
Product class (ETIM)Manifold for hydronic circuits (EC010292)
Connection type primary side2-pipe
Suitable for coolingno
MaterialBrass
Position primary connectionBottom
Primary connectionExternal thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Nominal diameter primary connection3/4 inch (20)
With valves on primary connectionyes
Max. operating pressure6 bar
With mixing valveyes
Expandableyes
Multi-zone manifoldyes
With temperature limityes
With circulation pumpyes
Type of pump (system pump)AC
With controllerno
Product codes
SAPGDI138
HPAC2070539
PLC2070539
GTIN/EAN5702000104744
Manufacturer part number17466210.218
Vendor material number2070539
Basic information
Package measurements (L x W x H)365 x 310 x 120 mm
Package volume13.578 l
Package weight4.8 kg
Base uniteach
Package units1 / 40
Package contents–
UNSPSC40141761
BrandROTH
VendorROTH FINLAND OY
The country of origin stated by the supplierFinland
