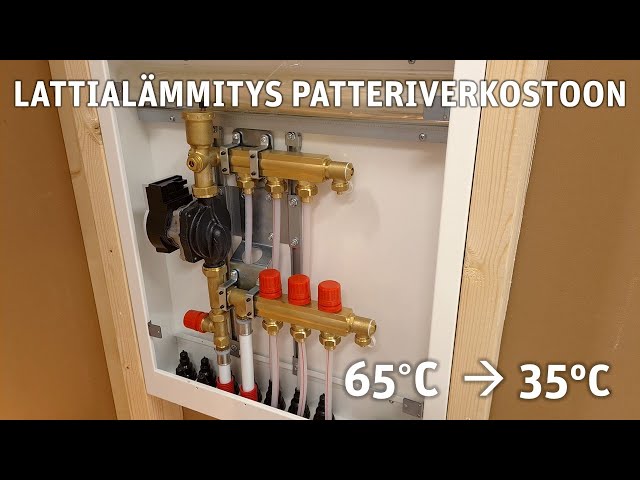

Video

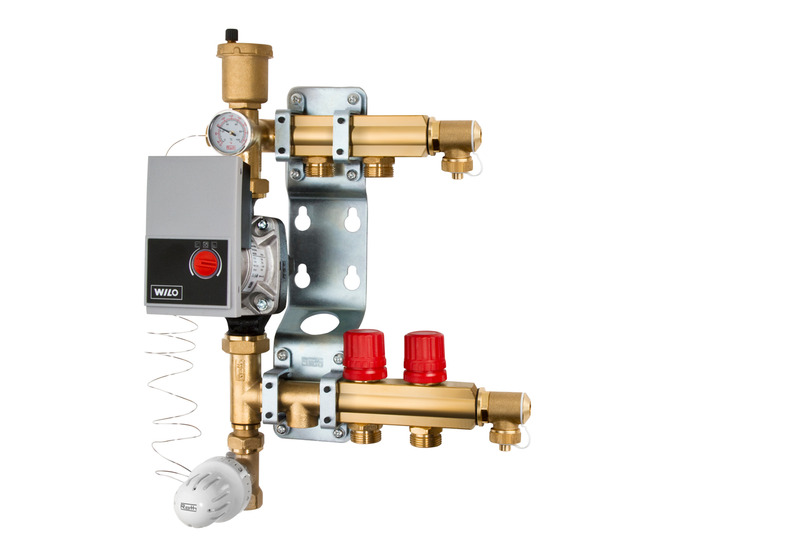

SHUNT UNIT ROTH 2
Product code
2070550
Includes a circulating water pump, distribution manifold (2 circuits), thermostat, and wall bracket. Maximum capacity 40 - 50 m². This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Manifold for hydronic circuits (EC010292)
Connection type primary side2-pipe
Suitable for coolingno
MaterialBrass
Position primary connectionBottom
Primary connectionInternal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
Nominal diameter primary connection1/2 inch (15)
Medium temperature (continuous)70 - 70 °C
Max. operating pressure10 bar
With mixing valveyes
Expandableyes
Max. number of expansion groups6
Multi-zone manifoldyes
With temperature limityes
With circulation pumpyes
Type of pump (system pump)AC
Product codes
SAPANF305
HPAC2070550
PLC2070550
GTIN/EAN5702000107325
Manufacturer part number17466212.120
Vendor material number2070550
Basic information
Package measurements (L x W x H)330 x 320 x 125 mm
Package volume13.2 l
Package weight5.3 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC40141609
BrandROTH
VendorROTH FINLAND OY
