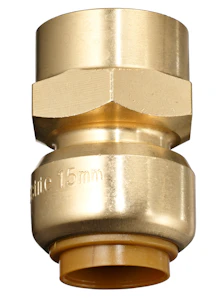

STRAIGHT COUPLING FT ROTH 22mm x 3/4 TT
Product code
2016276
The push-fit connector is installed without tools and is part of the Roth MultiPex pipe system. Its unique design allows the connection to be rotated after installation, and the installation can be disassembled using the push-fit connector opening tool. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Dezincification resistant brass (DZR)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Brass
Material quality connection 2Dezincification resistant brass (DZR)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Reducingno
Eccentricno
System specificyes
Nominal diameter connection 1DN 20
Outer pipe diameter connection 122 mm
Product codes
SAPAME165
HPAC2016276
PLC2016276
GTIN/EAN5022050001450
Manufacturer part number17047165.022
Vendor material number2016276
Basic information
Package measurements (L x W x H)50 x 35 x 35 mm
Package volume0.061 l
Package weight0.09 kg
Base uniteach
Package units1 / 5 / 100
Package contents–
UNSPSC40141720
BrandROTH
VendorROTH FINLAND OY
