WALL BOX ROTH 15mm TT QUICKBOX STONE WALL
Product code
2016368

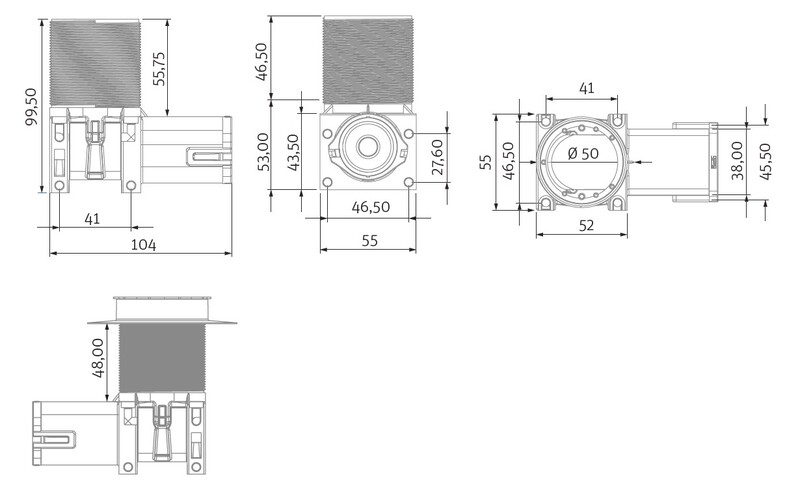

Roth QuickBox -corner box suitable for 15 mm MultiPex tubing with a 25/28 mm protective sleeve. Thanks to the push-fit connection and versatile mounting options, the corner box is easy and quick to install, and the flow pipe can be replaced after installation without damaging the structure. The protective sleeve connection withstands tension and pressure.
Roth QuickBox® corner box is approved for use in 10 bar domestic water systems. The corner box also meets requirements stricter than Finnish standards, in accordance with the Nordtest standard NT VVS 129 and Säker Vatteninstallation. Thanks to its long neck and compact body, the box fits almost all structures – the free depth in a wall frame can be as small as 37 mm.
Features
- Maximum wall finish thickness: 45 mm
- Diameter of wall penetration: 52 mm
- Push-fit size: according to corner box size (12 mm / 15 mm / 18 mm)
- Valve connection size: ˝” SK
Delivery content: Corner box and support sleeve for Roth MultiPex® tubing. The model designed for masonry walls does not include mounting screws, clamping flange, or installation support. Roth QuickBox® is part of the Roth MultiPex® system.
Related products:- Roth QuickBox® mounting bracket for masonry walls, center-to-center 150 mm: LVI number: 2016379
- Roth QuickBox® masonry support for corner box, center-to-center 150 mm: LVI number: 2016406
- Roth QuickBox® installation aid tool: LVI number: 2016529
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Dezincification resistant brass (DZR)
Material connection 2Brass
Material quality connection 2Dezincification resistant brass (DZR)
ShapeElbow (fitting)
Model1-part
Bend angle90 °
Eccentricno
System specificyes
Outer pipe diameter connection 115 mm
Connection 1Insert (push-fitting)
Nominal diameter connection 21/2 inch (15)
Connection 2Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
Main colour fittingOrange
Material sealingEthylene-propylene diene monomer rubber (EPDM)
Product codes
SAPAHB797
HPAC2016368
PLC2016368
GTIN/EAN5702000092867
Manufacturer part number17087274.215
Vendor material number2016368
Basic information
Package measurements (L x W x H)220 x 140 x 53 mm
Package volume1.632 l
Package weight0.23 kg
Base uniteach
Package units1 / 20 / 1200
Package contents–
UNSPSC40141720
BrandROTH
VendorROTH FINLAND OY
The country of origin stated by the supplierFinland
