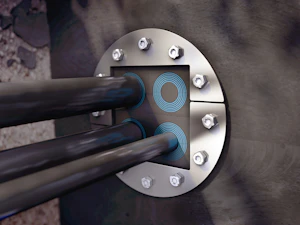

INLET FRAME R 200/7 UG
Product code
1753121
Roxtec KOS/UG products for underground applications
Roxtec R UG product series is installed into a round hole, e.g. a diamond-drilled hole or Roxtec KOS bushing. R 200/7 UG seals a total of 4 cables 10-23.5mm & 3 cables 24-54mm. The Roxtec R UG penetration fitting withstands continuous water pressure of 0.3 bar. This product description is an automated translation of the original Finnish description.
Roxtec R UG product series is installed into a round hole, e.g. a diamond-drilled hole or Roxtec KOS bushing. R 200/7 UG seals a total of 4 cables 10-23.5mm & 3 cables 24-54mm. The Roxtec R UG penetration fitting withstands continuous water pressure of 0.3 bar. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Wall transit for cables and tubes (EC000220)
ModelPress ring seal
Cable diameter10 - 52 mm
Tube diameter10 - 52 mm
Length90 mm
Seal width (depth)90 mm
Diameter wall opening200 - 202 mm
Width wall opening200 - 202 mm
Min. distance between different transits20 mm
Height wall opening200 - 202 mm
Number of cables7
Mounting methodCore holes/tubes
Gastightyes
Airtightyes
Watertightyes
Pressure0.5 bar
Product codes
SAPCEV599
STK1753121
PLC1753121
GTIN/EAN7332953102696
Manufacturer part number117854
Vendor material number117854
Basic information
Package measurements (L x W x H)200 x 200 x 60 mm
Package volume2.4 l
Package weight4.1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121311
BrandROXTEC
VendorROXTEC FINLAND OY
