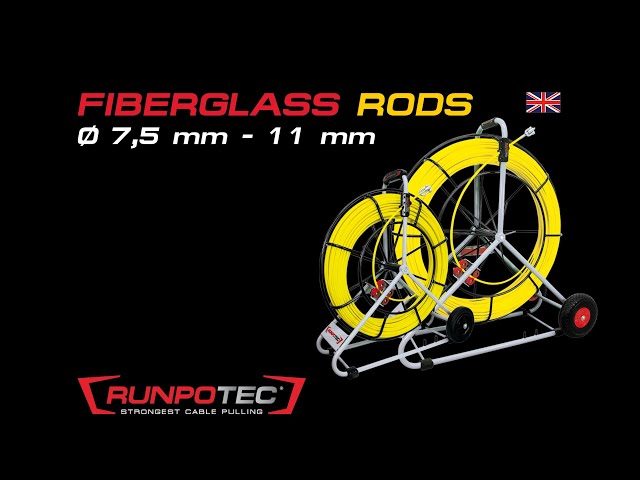

FIBERGLASS TRACTION 300m,11,0mm
Product code
6441915
The delivery includes 1 piece of 11 mm glass fiber rope with a robust steel frame (galvanized/powder coated), featuring a new dual system, end caps on both sides (start/end), a meter counter, and a winch. The winch has a 6 mm transition thread for adapting various guide ropes, cable pull grips, the multi-function camera RC 2, and similar devices.
Features
- includes steel frame and meter counter
- optimal operating range: pipe diameters 80 mm - 250 mm
- double drive system (automatic payout brake and rapid payout)
- additional parking brake
- total breaking load of glass fiber rod up to 6200 kg
- total working load 580 kg
- bending radius 770 mm
Product details
Technical specifications
Product class (ETIM)Cable pulling system (EC000167)
Application rangeInstallation tube
MaterialPlastic
Material qualityGRP (Glass fibre reinforced plastic)
ColourYellow
Width/diameter draw-in wire1100 mm
Material thickness draw-in wire11 mm
Breaking load580 kg
Head formRing
ShapeRound
Thread connectionyes
Length300 m
Carrying typeOther
Twistedno
Product codes
SAPCHP993
STK6441915
PLC6441915
GTIN/EAN9120045474534
Manufacturer part number10097
Vendor material number10097
Basic information
Package measurements (L x W x H)1170 x 570 x 1230 mm
Package volume820.287 l
Package weight62 kg
Base uniteach
Package units1
Package contents–
UNSPSC31161903
BrandRUNPOTEC
VendorGROWIT INFRA OY
