DECORATIVE LUMINAIRE DIAGONAL 1X3W 4K GLD
Product code
4128029
saas diagonal

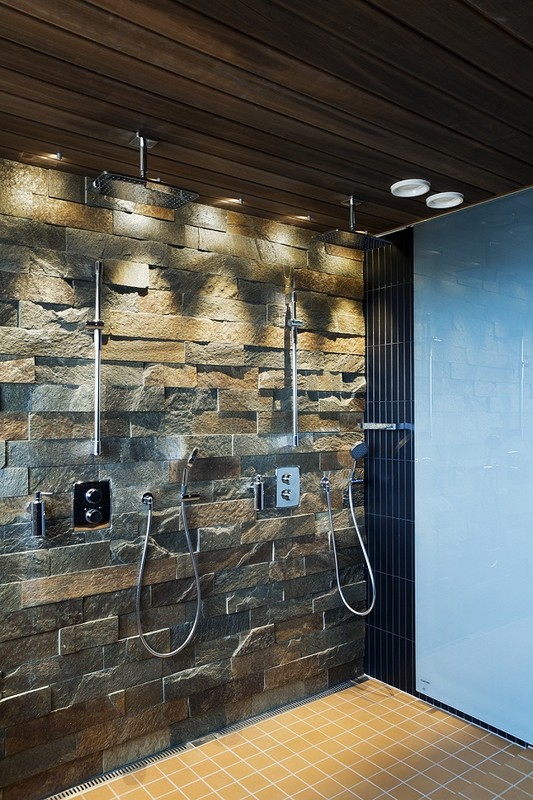

The saas diagonal light is excellently suited for illuminating walls and structures. The angled shade protects against glare and directs light toward the wall and floor. The beam angle can be adjusted between 40 and 60 degrees.
Compatible control gear:
saas driver (40 190 02) 4-8 LEDs
saas driver one led (41 281 18) 1-2 LEDs
saas dim (41 069 32) 1-12 LEDs
saas maxi dim (41 280 45) 1-16 LEDs This product description is an automated translation of the original Finnish description.
The saas diagonal light is excellently suited for illuminating walls and structures. The angled shade protects against glare and directs light toward the wall and floor. The beam angle can be adjusted between 40 and 60 degrees.
- Construction: 1 piece LED 3W / 350mA
- Color: Gold
- Optics: Beam angle adjustable between 40 and 60 degrees

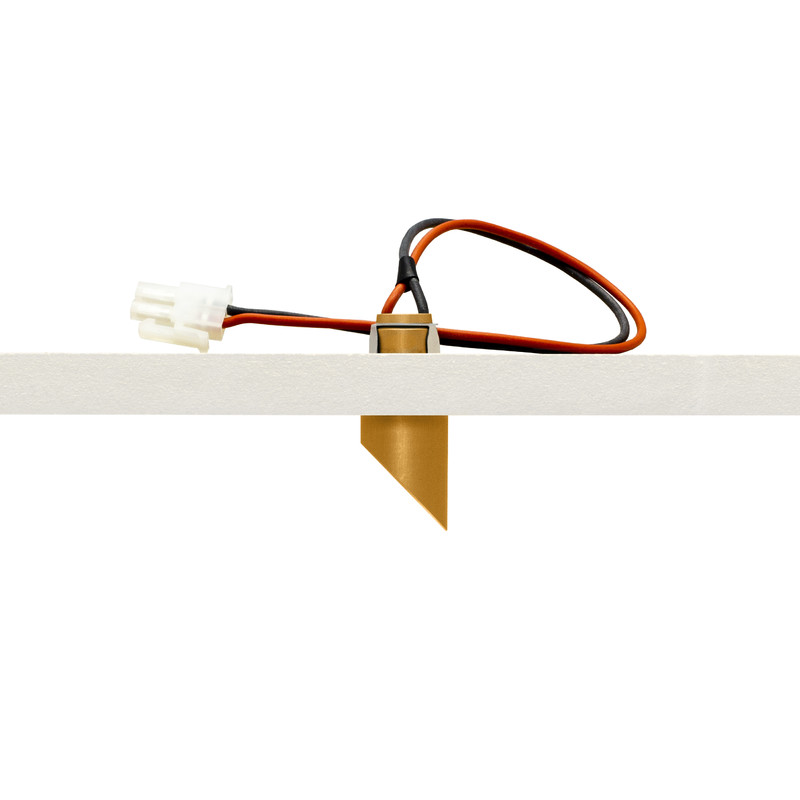

- Installation: Recessed installation, with 24mm height of the protruding part
- Connection: Series connection
- Protection class: IP44
- Luminous flux: approx. 100 lm / LED
- Color rendering index: CRI 90
- Color temperature: 4000K
Compatible control gear:
saas driver (40 190 02) 4-8 LEDs
saas driver one led (41 281 18) 1-2 LEDs
saas dim (41 069 32) 1-12 LEDs
saas maxi dim (41 280 45) 1-16 LEDs This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingno
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialAluminium
Surface protection housingOther
Housing colourGold
Material coverPlastic, transparent
Type of gridNone
Voltage typeDC
Product codes
SAPASL556
STK4128029
PLC4128029
GTIN/EAN6430025694702
Manufacturer part number10000497
Vendor material number4128029
Basic information
Package measurements (L x W x H)50 x 100 x 30 mm
Package volume0.15 l
Package weight0.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111501
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
The country of origin stated by the supplierFinland
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameSaas Instrumentti Oy
Websitehttps://saas.fi/yhteys/
Postal addressHenry Fordin katu 5 B, 00150 Helsinki, Suomi
