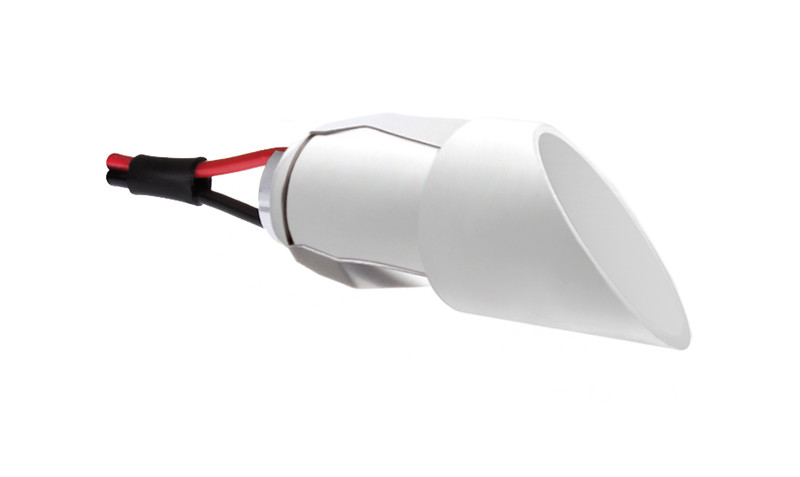

DECORATIVE LUMINAIRE DIAGONAL 1X3W 4K WH
Product code
4128032
saas diagonal

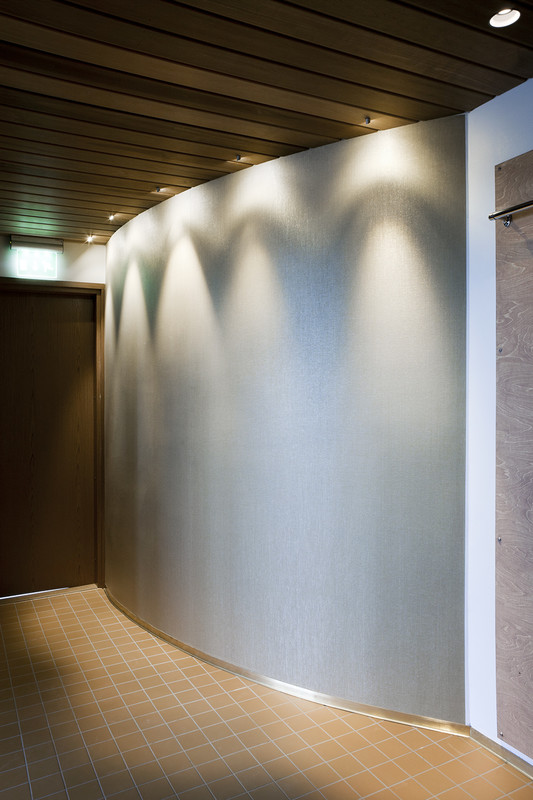

The saas diagonal light is excellently suited for illuminating walls and structures. The angled shade protects against glare and directs light toward the wall and floor. The beam angle can be adjusted between 40 and 60 degrees.
Compatible control gear:
saas driver (40 190 02) 4-8 LEDs
saas driver one led (41 281 18) 1-2 LEDs
saas dim (41 069 32) 1-12 LEDs
saas maxi dim (41 280 45) 1-16 LEDs This product description is an automated translation of the original Finnish description.
The saas diagonal light is excellently suited for illuminating walls and structures. The angled shade protects against glare and directs light toward the wall and floor. The beam angle can be adjusted between 40 and 60 degrees.
- Construction: 1 piece LED 3W / 350mA
- Color: White
- Optics: Beam angle adjustable between 40 and 60 degrees

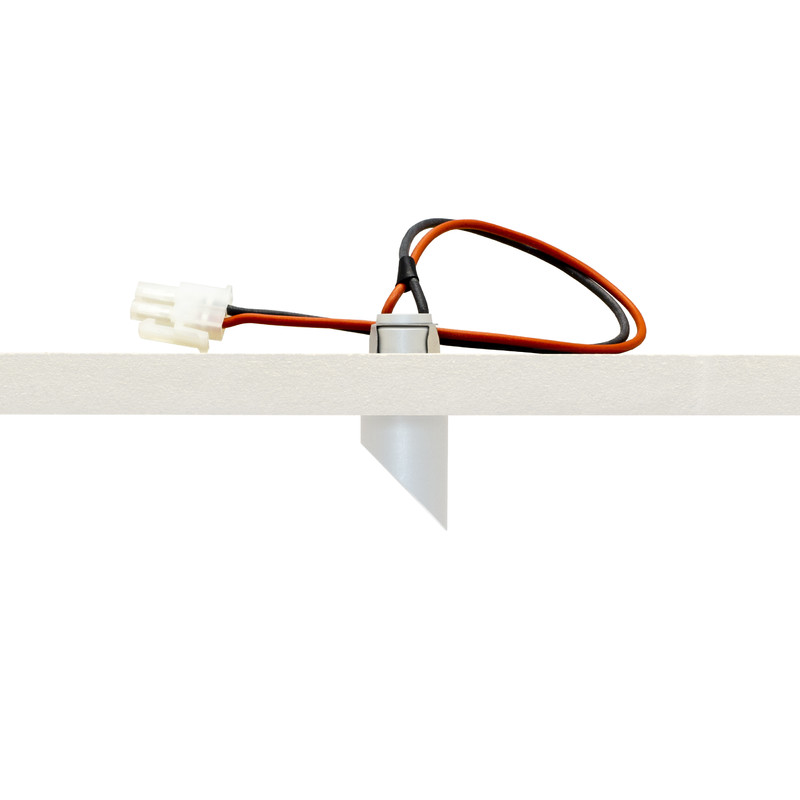

- Installation: Recessed mounting, with 24mm protrusion height
- Connection: Series connection
- Protection class: IP44
- Luminous flux: approx. 100 lm / LED
- Color rendering index: CRI 90
- Color temperature: 4000K
Compatible control gear:
saas driver (40 190 02) 4-8 LEDs
saas driver one led (41 281 18) 1-2 LEDs
saas dim (41 069 32) 1-12 LEDs
saas maxi dim (41 280 45) 1-16 LEDs This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingno
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialAluminium
Surface protection housingOther
Housing colourWhite
Material coverPlastic, transparent
Type of gridNone
Voltage typeDC
Product codes
SAPASL558
STK4128032
PLC4128032
GTIN/EAN6430025694801
Manufacturer part number10000496
Vendor material number4128032
Basic information
Package measurements (L x W x H)50 x 100 x 30 mm
Package volume0.15 l
Package weight0.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111501
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
The country of origin stated by the supplierFinland
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameSaas Instrumentti Oy
Websitehttps://saas.fi/yhteys/
Postal addressHenry Fordin katu 5 B, 00150 Helsinki, Suomi
