LED STRIP 3K IP20 24V 4,8W/M 657lM/M
Product code
4133327

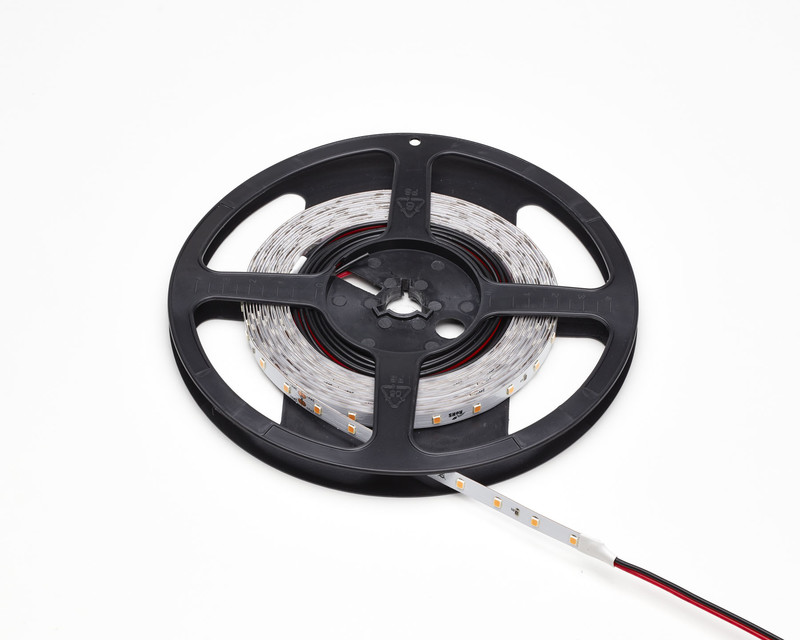

5-meter roll of LED strip with 320 surface-mount LEDs. The back of the strip features 3M adhesive backing, and the LED strip can be cut every 125 mm. Both ends of the LED strip are pre-soldered with 3 meters of white-gray supply cable.
Power consumption: 4.8W/m / 153 lm/w.
Features- construction: 5m LED strip with 3M tape, connection cables 3m
- dimensions: width 8mm, height approx. 1.5mm
- color: 3000K
- power: 4.8 W/m
- voltage: 24V
- light emission angle: 120°
- luminous flux: 657 lm/m
- installation: Adhesive mounting to surface
- wiring: Parallel connection
- protection rating: IP20
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter64
Lamp power per meter4.8 W
Luminous flux per meter657 lm
Voltage typeDC
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Max. system power24 W
Colour of lightWhite
Colour temperature3000-3000 K
Product codes
SAPCLA175
STK4133327
PLC4133327
GTIN/EAN6438524001687
Manufacturer part number10001693
Vendor material number4133327
Basic information
Package measurements (L x W x H)285 x 245 x 23 mm
Package volume1.606 l
Package weight0.2 kg
Base uniteach
Package units1 / 100
Package contents–
UNSPSC39112102
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameSaas Instrumentti Oy
Websitehttps://saas.fi/yhteys/
Postal addressHenry Fordin katu 5 B, 00150 Helsinki, Suomi
Safety manual
