LED STRIP 3K IP65 Nano 24V 12W/M
Product code
4133337
saas strip pro P IP65 NANO

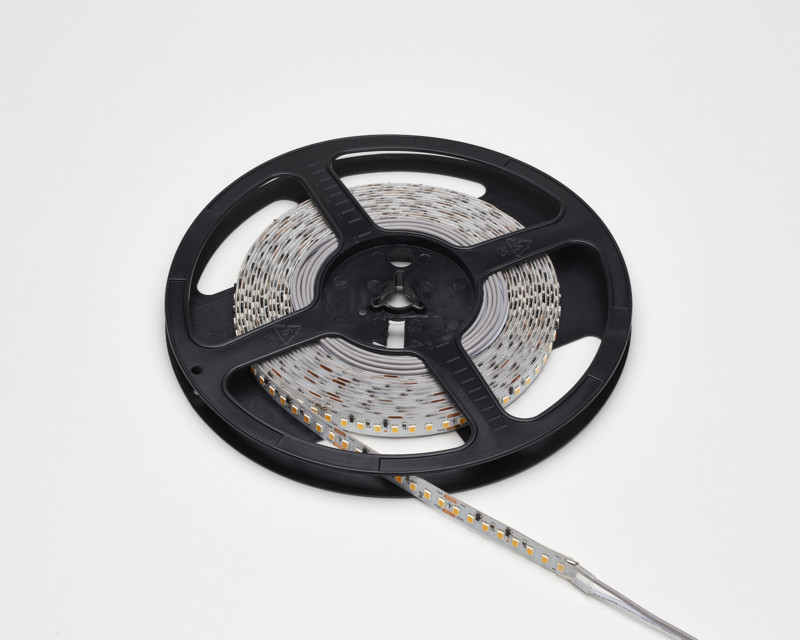

LED strip on a 5-meter reel with 800 surface-mount LEDs. The strip features an invisible IP65 NANO coating. The back of the strip has a 3M adhesive backing and can be cut every 50 mm. Both ends of the strip are pre-soldered with 3 meters of white-gray supply cable.
Power consumption: 12W/m / 154 lm/w.
LED strip on a 5-meter reel with 800 surface-mount LEDs. The strip features an invisible IP65 NANO coating. The back of the strip has a 3M adhesive backing and can be cut every 50 mm. Both ends of the strip are pre-soldered with 3 meters of white-gray supply cable.
Power consumption: 12W/m / 154 lm/w.
- Construction: 5m LED strip with 3M tape, connectors 3m
- Dimensions: Width 8mm, height approx. 1.6mm
- Color: 3000K
- Power: 12 W/m
- Voltage: 24V
- Beam angle: 120°
- Luminous flux: 1660 lm/m
- Installation: Adhesive mounting to surface; install into heat sink profile (e.g., highline striprail 41 280 33)
- Connection: Parallel connection
- Protection rating: IP65NANO
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter160
Lamp power per meter12 W
Luminous flux per meter1660 lm
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP65
Protection class according to IEC 61140III
Max. system power60 W
Colour of lightWhite
Product codes
SAPCLA183
STK4133337
PLC4133337
GTIN/EAN6438524000604
Manufacturer part number10001699
Vendor material number4133337
Basic information
Package measurements (L x W x H)5000 x 8 x 1.6 mm
Package volume0.064 l
Package weight0.3 kg
Base uniteach
Package units1 / 60
Package contents–
UNSPSC39112102
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
