LED STRIP 4K IP20 24V 12W/M 1712lM/M

Product code
4133334

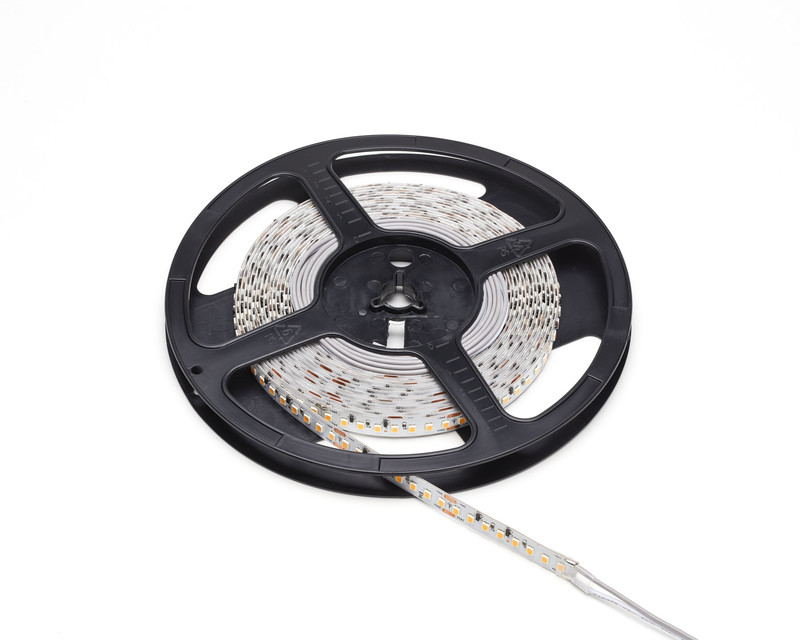

Saas Strip Pro P is a 5-meter LED strip reel with 800 surface-mount LEDs. The strip has a 3M adhesive backing and can be cut every 50 mm. Both ends of the LED strip are pre-soldered with 3 meters of white-gray power cable. Power consumption: 12 W/m / 159 lm/w.

Features
  • construction: 5m LED strip with 3M tape, connector cables 3m
  • dimensions: width 8mm, height approx. 1.6mm
  • color: 4000K
  • power: 12 W/m
  • voltage: 24V
  • light emission angle: 120°
  • luminous flux: 1712 lm/m
  • installation: adhesive mounting to surface, must be mounted on a heat sink profile (e.g., highline striprail 4128033)
  • wiring: parallel connection
  • protection rating: IP20
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter160
Lamp power per meter12 W
Luminous flux per meter1712 lm
Voltage typeDC
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Max. system power12 W
Colour of lightWhite
Colour temperature4000 - 4000 K

Product codes

SAPCLA182
STK4133334
PLC4133334
GTIN/EAN6438524001625
Manufacturer part number10001700
Vendor material number4133334

Basic information

Package measurements (L x W x H)285 x 245 x 23 mm
Package volume1.606 l
Package weight0.22 kg
Base uniteach
Package units1 / 100
Package contents
UNSPSC39112102
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY

Environment and safety

Manufacturer

NameSaas Instrumentti Oy
Postal addressHenry Fordin katu 5 B, 00150 Helsinki, Suomi
Safety manual
