LED STRIP 4K IP20 24V 18W/M 2500lM/M
Product code
4133340
saas strip pro SP

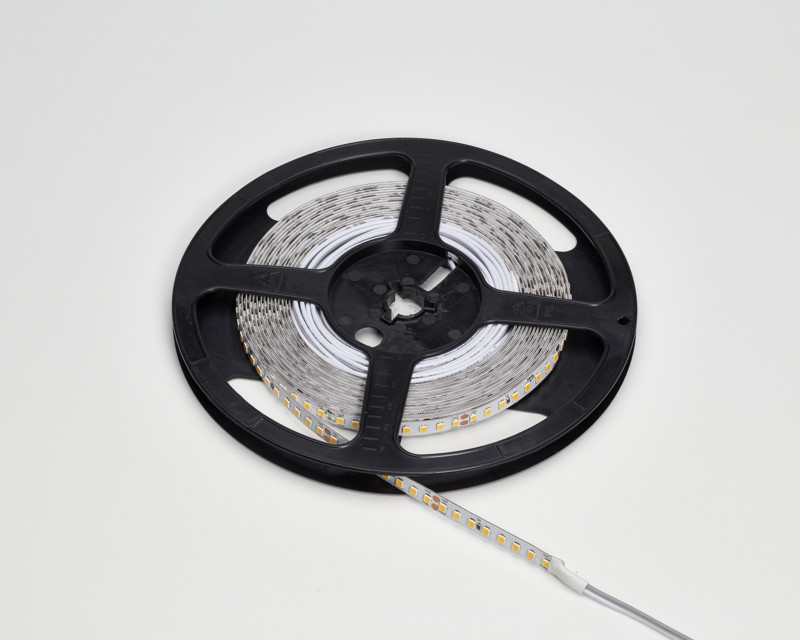

LED strip on a 5-meter reel with 800 surface-mount LEDs. The strip has a 3M adhesive backing on the reverse side and can be cut every 50 mm. Both ends of the LED strip are pre-soldered with 3 meters of white-gray power cable.
Power consumption: 18W/m / 153 lm/w.
LED strip on a 5-meter reel with 800 surface-mount LEDs. The strip has a 3M adhesive backing on the reverse side and can be cut every 50 mm. Both ends of the LED strip are pre-soldered with 3 meters of white-gray power cable.
Power consumption: 18W/m / 153 lm/w.
- Structure: 5m LED strip with 3M tape, connectors 3m
- Dimensions: Width 10mm, height approx. 1.5mm
- Color: 4000K
- Power: 18 W/m
- Voltage: 24V
- Beam angle: 120°
- Luminous flux: 2500 lm/m
- Installation: Adhesive mounting to surface; must be installed on a heat sink profile (e.g., highline striprail 41 280 33)
- Connection: Parallel connection
- Protection rating: IP20
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter160
Lamp power per meter18 W
Luminous flux per meter2500 lm
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP20
Protection class according to IEC 61140III
Max. system power90 W
Colour of lightWhite
Product codes
SAPCLA178
STK4133340
PLC4133340
GTIN/EAN6438524001748
Manufacturer part number10001706
Vendor material number4133340
Basic information
Package measurements (L x W x H)285 x 245 x 23 mm
Package volume1.606 l
Package weight0.31 kg
Base uniteach
Package units1 / 100
Package contents–
UNSPSC39112102
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.03
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameSaas Instrumentti Oy
Websitehttps://saas.fi/yhteys/
Postal addressHenry Fordin katu 5 B, 00150 Helsinki, Suomi
Safety manual
