LED STRIP 4K IP65 Nano 24V 12W/M
Product code
4133338
saas strip pro P IP65 NANO

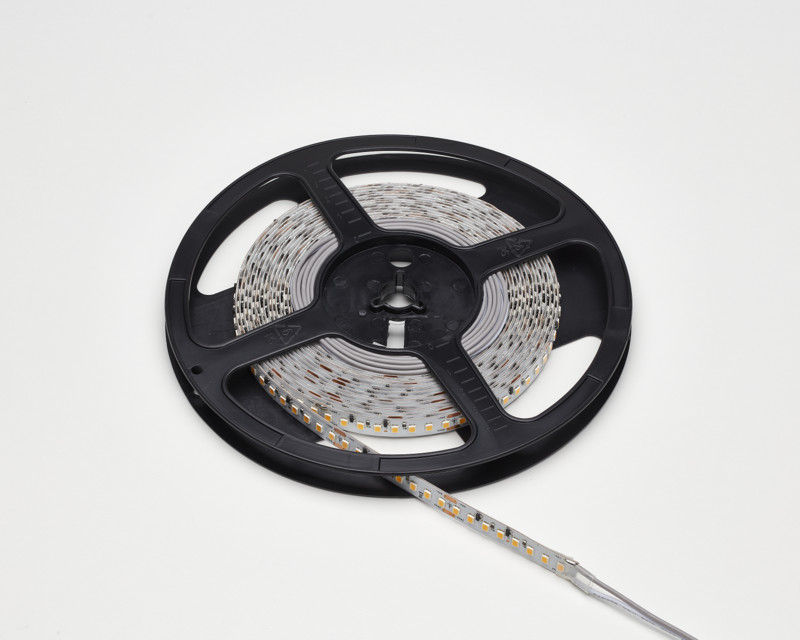

LED strip on a 5-meter reel with 800 surface-mount LEDs. The strip features an invisible IP65 NANO coating. The backside has a 3M adhesive tape, and the strip can be cut every 50 mm. Both ends of the strip are pre-soldered with 3 meters of white-gray power cable. Power consumption is 12W/m /154 lm/w.
LED strip on a 5-meter reel with 800 surface-mount LEDs. The strip features an invisible IP65 NANO coating. The backside has a 3M adhesive tape, and the strip can be cut every 50 mm. Both ends of the strip are pre-soldered with 3 meters of white-gray power cable. Power consumption is 12W/m /154 lm/w.
- Construction: 5m LED strip with 3M tape, connection cables 3m
- Dimensions: Width 8mm, height approx. 1.6mm
- Color: 4000K
- Power: 12 W/m
- Voltage: 24V
- Beam angle: 120°
- Luminous flux: 1660 lm/m
- Installation: Adhesive mounting to surface, must be installed on a heat sink profile (e.g., highline striprail 41 280 33)
- Connection: Parallel connection
- Protection rating: IP65NANO
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter160
Lamp power per meter12 W
Luminous flux per meter1712 lm
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP65
Protection class according to IEC 61140III
Max. system power60 W
Colour of lightWhite
Product codes
SAPCLA184
STK4133338
PLC4133338
GTIN/EAN6438524000611
Manufacturer part number10001703
Vendor material number4133338
Basic information
Package measurements (L x W x H)5000 x 8 x 1.6 mm
Package volume0.064 l
Package weight0.3 kg
Base uniteach
Package units1 / 60
Package contents–
UNSPSC39112102
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.9
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameSaas Instrumentti Oy
Websitehttps://saas.fi/yhteys/
Postal addressHenry Fordin katu 5 B, 00150 Helsinki, Suomi
Safety manual
