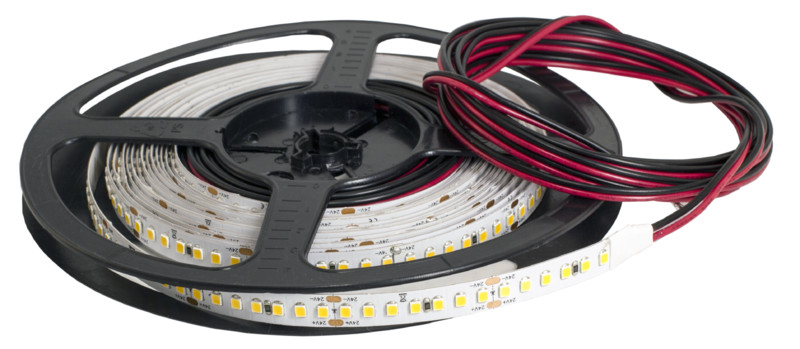

LED STRIP PRO SP 17W/M IP20 3K
Product code
4128091
highline strip pro SP 3000K
Professional-grade LED strip on a 5-meter reel, featuring 300 surface-mount LEDs. The strip has a 3M adhesive backing on the reverse side and can be cut every 42 mm.
Both ends of the LED strip are pre-soldered with 3 meters of supply cable.
Power consumption approx. 92.5W / 5m.
Professional-grade LED strip on a 5-meter reel, featuring 300 surface-mount LEDs. The strip has a 3M adhesive backing on the reverse side and can be cut every 42 mm.
Both ends of the LED strip are pre-soldered with 3 meters of supply cable.
Power consumption approx. 92.5W / 5m.
- Construction: 5m LED strip with 3M tape, 3m connection cables
- Dimensions: Width 10mm, height approx. 2.5mm
- Color: 3000K
- Power: 18.5 W/m
- Voltage: 24V
- Beam Angle: 120°
- Luminous Flux: approx. 2280 lm/m
- Installation: Adhesive mounting to surface; must be installed on a heat sink profile (highline striprail 41 069 05, 41 280 33)
- Connection: Parallel connection
- Protection Rating: IP20
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter168
Number of nodes per foot50
Lamp power per meter18.5 W
Lamp power per foot5.55 W
Luminous flux per meter2280 lm
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C30000 h
Degree of protection (IP)IP20
Degree of protection (NEMA)1
Product codes
SAPCCB935
STK4128091
PLC4128091
GTIN/EAN6430025693774
Manufacturer part number85107201
Vendor material number4128091
Basic information
Package measurements (L x W x H)240 x 15 x 290 mm
Package volume1.044 l
Package weight0.22 kg
Base unitBag
Package units1
Package contents–
UNSPSC39112102
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.86
GWP, unitBag
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameSaas Instrumentti Oy
Websitehttps://saas.fi/yhteys/
Postal addressHenry Fordin katu 5 B, 00150 Helsinki, Suomi
Safety manual
