LED STRIP STRIP PRO 4,8W/M IP20 5K
Product code
4128086
highline strip pro 5000K

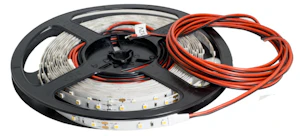

Professional-grade LED tape on a 5-meter reel, featuring 300 surface-mount LEDs. The tape has a 3M adhesive backing on the reverse side and can be cut every 50 mm.
Pre-soldered 3-meter power cables are attached to both ends of the LED tape.
Power consumption approx. 24W / 5m.
- Construction: 5m LED tape with 3M tape, 3m connection wires
- Dimensions: Width 8mm, height approx. 2.5mm
- Color: 5000K
- Power: 4.8 W/m
- Voltage: 12V
- Beam Angle: 120°
- Luminous Flux: approx. 300 lm/m
- Installation: Adhesive mounting to surface
- Connection: Parallel connection
- Enclosure Rating: IP20
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter60
Number of nodes per foot18
Lamp power per meter4.8 W
Lamp power per foot1.44 W
Luminous flux per meter330 lm
Voltage typeDC
Lamp voltage12-12 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C40000 h
Degree of protection (IP)IP20
Degree of protection (NEMA)1
Product codes
SAPCCB944
STK4128086
PLC4128086
GTIN/EAN6430025693866
Manufacturer part number10000587
Vendor material number4128086
Basic information
Package measurements (L x W x H)300 x 300 x 30 mm
Package volume2.7 l
Package weight0.5 kg
Base unitBag
Package units1
Package contents–
UNSPSC39112102
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.5
GWP, unitBag
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameSaas Instrumentti Oy
Websitehttps://saas.fi/yhteys/
Postal addressHenry Fordin katu 5 B, 00150 Helsinki, Suomi
Safety manual
