LED STRIP STRIP PRO IP20 2.7K 12V
Product code
4128099
highline strip pro 2700K

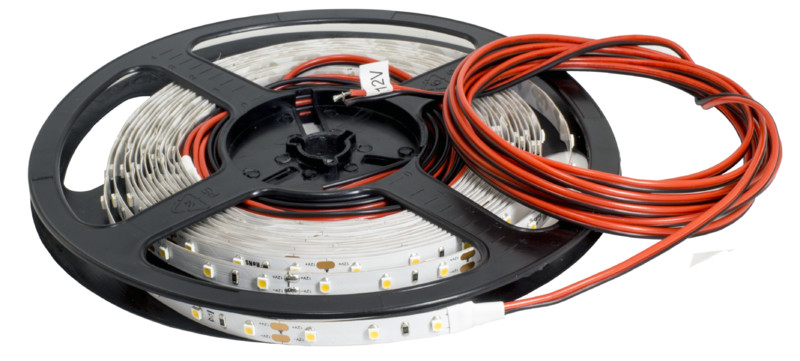

Professional-grade LED tape on a 5-meter reel with 300 surface-mount LEDs. The tape has a 3M adhesive backing on the reverse side and can be cut every 50 mm.
Pre-soldered 3-meter power cables are attached to both ends of the LED tape.
Power consumption approx. 24W / 5m.
- Construction: 5m LED tape with 3M tape, connectors 3m
- Dimensions: Width 8mm, height approx. 2.5mm
- Color: 2700K
- Power: 4.8 W/m
- Voltage: 12V
- Beam Angle: 120°
- Luminous Flux: approx. 300 lm/m
- Installation: Adhesive mounting to surface
- Connection: Parallel connection
- Protection Rating: IP20
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter60
Number of nodes per foot18
Lamp power per meter4.8 W
Lamp power per foot1.44 W
Luminous flux per meter300 lm
Voltage typeDC
Lamp voltage12-12 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C40000 h
Degree of protection (IP)IP20
Degree of protection (NEMA)1
Product codes
SAPCDV811
STK4128099
PLC4128099
GTIN/EAN6430025695501
Manufacturer part number10000572
Vendor material number4128099
Basic information
Package measurements (L x W x H)5000 x 8 x 2.5 mm
Package volume0.1 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39112102
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
