OPTICAL FIBRE LUMINAIRE SAUNA BASIC 10W LED 6+1 DIM
Product code
4128051
Glass fiber set with LED projector

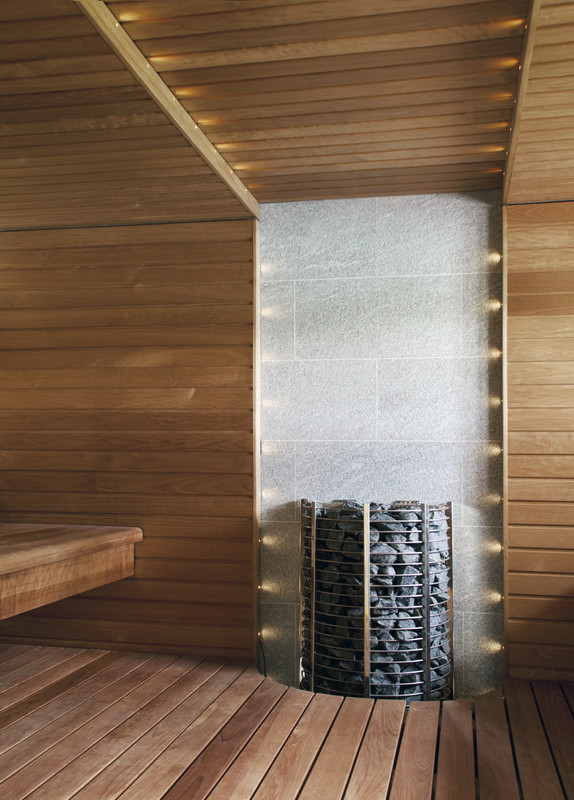

Glass fiber set with LED projector for sauna bench and ceiling lighting. The lighting package includes 2.0mm / 3.0mm glass fiber bundles with terminations and a 10W dimmable LED projector suitable for sauna installation. The lighting package is suitable for a sauna space of 4-5m². Dimming is achieved via a push button or a 1-10V controller. In sauna installation, the transformer must be enclosed.
3000K
Glass fiber lengths:
2 x 2.5m / 2.0mm + installation holder, satin
2 x 3.0m / 2.0mm + installation holder, satin
2 x 4.0m / 2.0mm + installation holder, satin
1 x 5.0m / 3.0mm + installation holder with lens, satin
Installation:
Glass fibers: Installation hole 12mm / 15mm.
Glass fibers must not be cut.
Projector: Surface mounting with screws.
Suitable for retrofit installation.
Power supply must be enclosed.
Light source:
10W LED projector IP54 + dimmable driver IP20 This product description is an automated translation of the original Finnish description.
Glass fiber set with LED projector for sauna bench and ceiling lighting. The lighting package includes 2.0mm / 3.0mm glass fiber bundles with terminations and a 10W dimmable LED projector suitable for sauna installation. The lighting package is suitable for a sauna space of 4-5m². Dimming is achieved via a push button or a 1-10V controller. In sauna installation, the transformer must be enclosed.
3000K
Glass fiber lengths:
2 x 2.5m / 2.0mm + installation holder, satin
2 x 3.0m / 2.0mm + installation holder, satin
2 x 4.0m / 2.0mm + installation holder, satin
1 x 5.0m / 3.0mm + installation holder with lens, satin
Installation:
Glass fibers: Installation hole 12mm / 15mm.
Glass fibers must not be cut.
Projector: Surface mounting with screws.
Suitable for retrofit installation.
Power supply must be enclosed.
Light source:
10W LED projector IP54 + dimmable driver IP20 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fibre optic cable light system (EC000470)
Suitable for lamp typeLED not exchangeable
Suitable as inspection lightno
With light sourceyes
Power of light generator10 W
Housing materialAluminium
Material of fibresGlass
Diameter single fibre2-3 mm
Total number of fibre bundles7
Mix bundleno
Diameter fibre bundle30 mm
With colour discno
Type of colour discOther
Type of control gearLED operating device current-controlled
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)Other
Product codes
SAPATM862
STK4128051
PLC4128051
GTIN/EAN6438524001571
Manufacturer part number10000672
Vendor material number4128051
Basic information
Package measurements (L x W x H)290 x 265 x 60 mm
Package volume4.611 l
Package weight1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111501
BrandSAAS INSTRUMENTTI
VendorSAAS INSTRUMENTTI OY
The country of origin stated by the supplierFinland
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)13.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameSaas Instrumentti Oy
Websitehttps://saas.fi/yhteys/
Postal addressHenry Fordin katu 5 B, 00150 Helsinki, Suomi
Safety manual
