CAM SWITCH 3 POLE 20A DIN-HOLE/RAIL
Product code
3607333

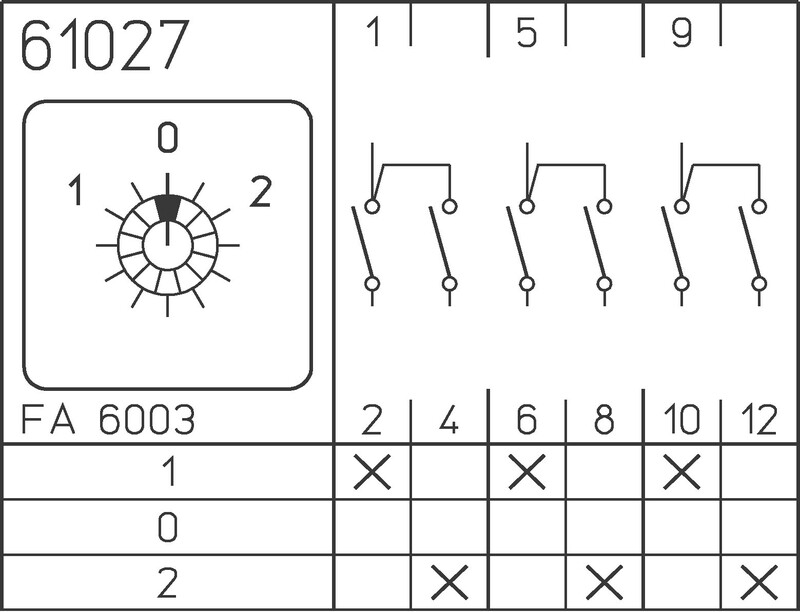

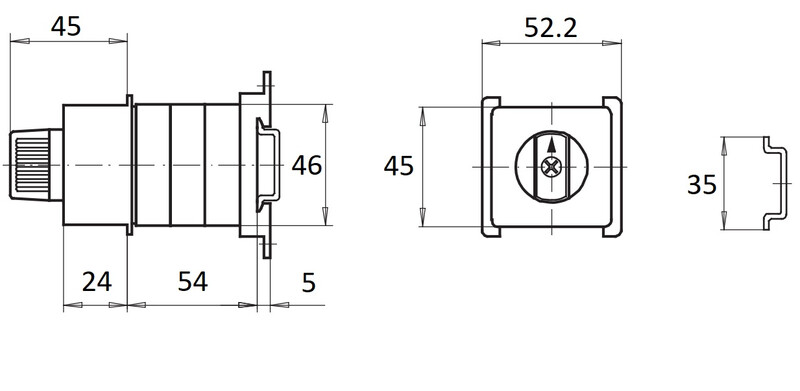

Switch for controlling a three-phase load, for example for use with two different alternative loads. The switch has a 0 position for completely disconnecting the load. Installation possible in DIN-dimensioned enclosures and panels. Front panel dimensions exiting from the DIN opening: 45 x 52.2 mm. Mounting on a 35 mm DIN rail. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Control switch (EC002611)
Type of switchOn/off switch
Number of poles6
Max. rated operation voltage Ue AC690 V
Rated permanent current Iu20 A
Number of switch positions3
With zero (off) positionyes
With retraction in 0-positionno
Device constructionBuilt-in device
Suitable for distribution board installationyes
Suitable for intermediate mountingyes
Type of control elementShort rotary handle
Front shield size48x48 mm
Degree of protection (IP), front sideIP40
Degree of protection (NEMA), front sideOther
Product codes
SAPABA004
STK3607333
PLC3607333
GTIN/EAN4024537015609
Manufacturer part numberM220-61027-026N2
Vendor material number3607333
Basic information
Package measurements (L x W x H)100 x 80 x 80 mm
Package volume0.64 l
Package weight0.15 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122209
BrandSÄLZER
VendorUTU OY
The country of origin stated by the supplierFinland
