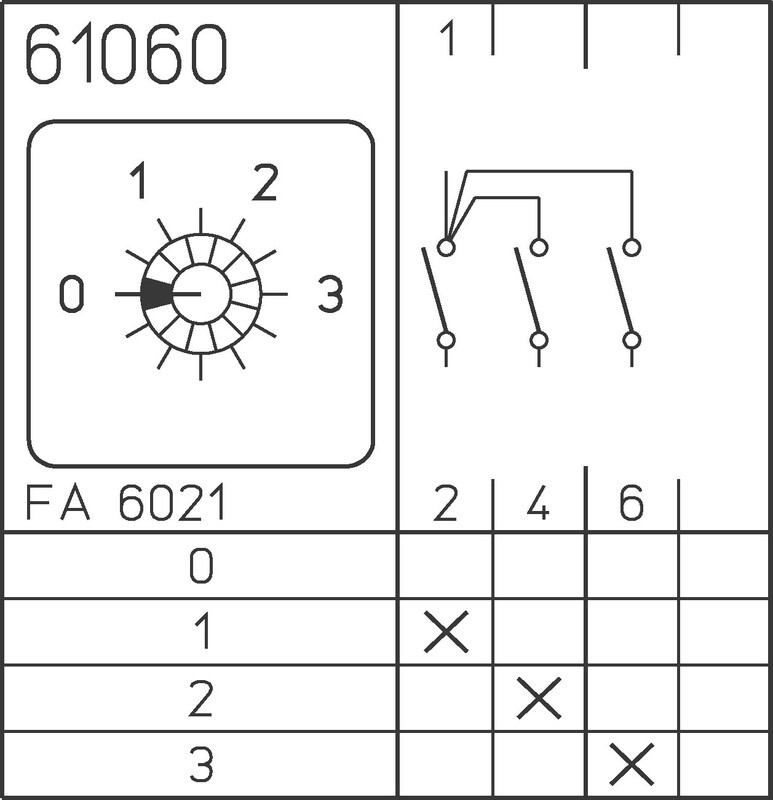

CAM SWITCH STEP M220 1P 20A 0-1-2-3 DEV.BOX
Product code
3607013
From our lever switch range, you can find rotary and lever-type control switches suitable for loading, control, and instrumentation circuits. From our key switch range, you will find versatile products for panel, base, instrument panel, and DIN mounting, housed within rated current ranges of 10 to 315 A. We can also supply customer-specific and customized key switches with rated currents of 20 and 25 A, allowing the customer to freely define the switching function and engraving on the plates. From our modular lever switch range, you will find products suitable for control and network switching with rated currents of 25 to 63 A. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Control switch (EC002611)
Type of switchLevel switch
Number of poles3
Max. rated operation voltage Ue AC690 V
Rated permanent current Iu20 A
Number of switch positions4
With zero (off) positionyes
With retraction in 0-positionno
Width in number of modular spacings0
Suitable for distribution board installationyes
Complete device in housingno
Type of control elementShort rotary handle
Front shield size48x48 mm
Degree of protection (IP), front sideIP30
Degree of protection (NEMA), front sideOther
Product codes
SAPAIZ864
STK3607013
PLC3607013
GTIN/EAN4024537003675
Manufacturer part numberM220-61060-025N3
Vendor material number3607013
Basic information
Package measurements (L x W x H)100 x 80 x 80 mm
Package volume0.64 l
Package weight0.1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122209
BrandSÄLZER
VendorUTU OY
