CAM SWITCH STEP P220 1P 20A 0-1-2-3-4 22.5
Product code
3607016

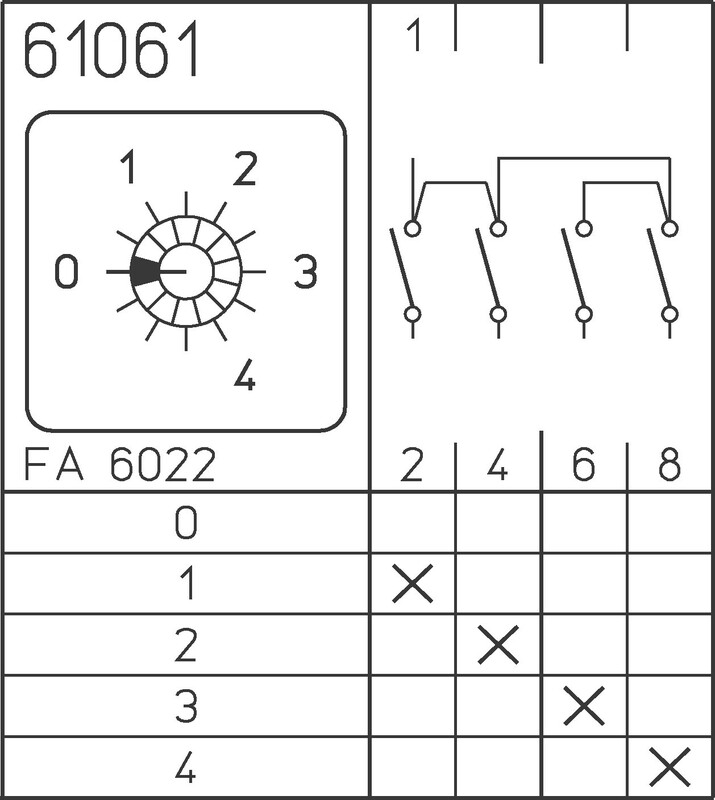

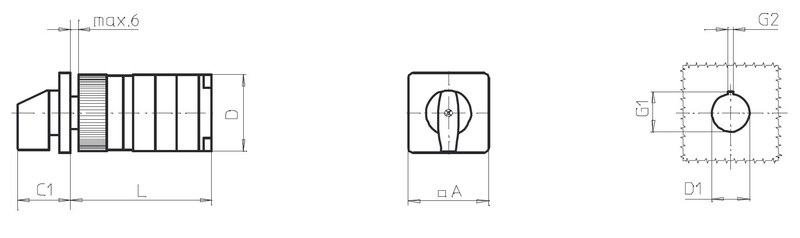

5-position control switch with step function and 0 position for activating four different loads or states in the installation. Mounting into a 22.5 mm central hole in the front panel of equipment, electrical panels, or control panels. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Control switch (EC002611)
Type of switchLevel switch
Number of poles4
Max. rated operation voltage Ue AC690 V
Rated permanent current Iu20 A
Number of switch positions5
With zero (off) positionyes
With retraction in 0-positionno
Device constructionBuilt-in device
Width in number of modular spacings0
Suitable for distribution board installationyes
Suitable for intermediate mountingyes
Complete device in housingno
Type of control elementShort rotary handle
Front shield size48x48 mm
Degree of protection (IP), front sideIP66
Product codes
SAPAIZ861
STK3607016
PLC3607016
GTIN/EAN4024537013001
Manufacturer part numberP220-61061-219M1
Vendor material number3607016
Basic information
Package measurements (L x W x H)100 x 80 x 80 mm
Package volume0.64 l
Package weight0.1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122209
BrandSÄLZER
VendorUTU OY
