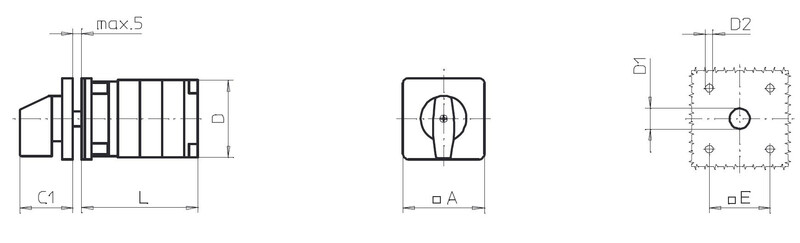

CHANGE-OVER SWITCH P220 1-0-2 3P 20A 4-HOLE
Product code
3607054
Three-pole changeover switch with positions 1-0-2. The switch is equipped with a pre-installed rotary handle. The handle returns to position 0 from positions 1 and 2 when released. Mount on the panel of a cabinet or device using four-point mounting. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Control switch (EC002611)
Type of switchReverser
Number of poles3
Max. rated operation voltage Ue AC690 V
Rated permanent current Iu20 A
Number of switch positions3
With zero (off) positionyes
With retraction in 0-positionyes
Device constructionBuilt-in device
Suitable for distribution board installationyes
Complete device in housingno
Type of control elementShort rotary handle
Front shield size48x48 mm
Degree of protection (IP), front sideIP66
Degree of protection (NEMA), front sideOther
Product codes
SAPCIC764
STK3607054
PLC3607054
GTIN/EAN4024537264458
Manufacturer part numberP220-61363-003M1
Vendor material number3607054
Basic information
Package measurements (L x W x H)110 x 50 x 50 mm
Package volume0.275 l
Package weight0.14 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122209
BrandSÄLZER
VendorUTU OY
