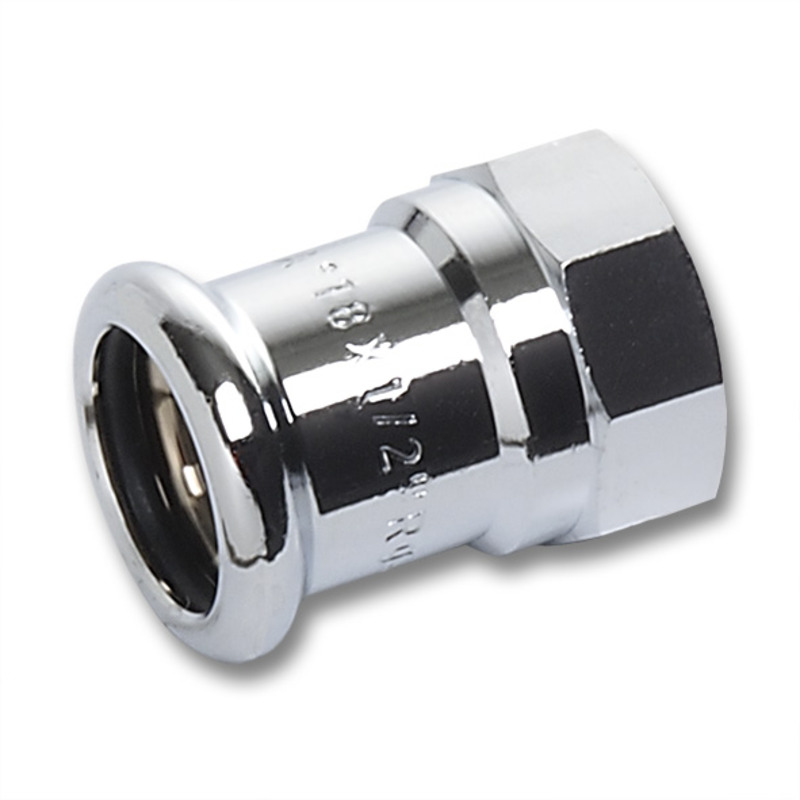

PRESS ADAPTER WITH FT CU 15x1/2 CHROME SANHA
Product code
1543155
Copper compression fitting system suitable for installation with M, V, and SA profiles up to 54 mm. Pressure class PN16, black EPDM O-ring resistant to glycol. Operating temperature: -30°C to 120°C. Components compatible with EN1057 copper pipes. Threaded parts manufactured from phosphor bronze (CuSi), a zinc and lead-free material. Phosphor bronze components can be installed with Sanha acid-resistant pipes. Leak-free without compression. Always perform a leak test before pressure testing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
ShapeStraight
Outer pipe diameter connection 115 mm
Connection 1Press sleeve
Nominal diameter connection 21/2 inch (15)
Connection 2Press sleeve
Product codes
SAPAMN120
HPAC1543155
PLC1543155
GTIN/EAN4021343219665
Manufacturer part number116270G1512
Vendor material number116270G1512
Basic information
Package measurements (L x W x H)32 x 25 x 25 mm
Package volume0.02 l
Package weight0.042 kg
Base uniteach
Package units1 / 10 / 250
Package contents–
UNSPSC40172612
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (13)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1155
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
