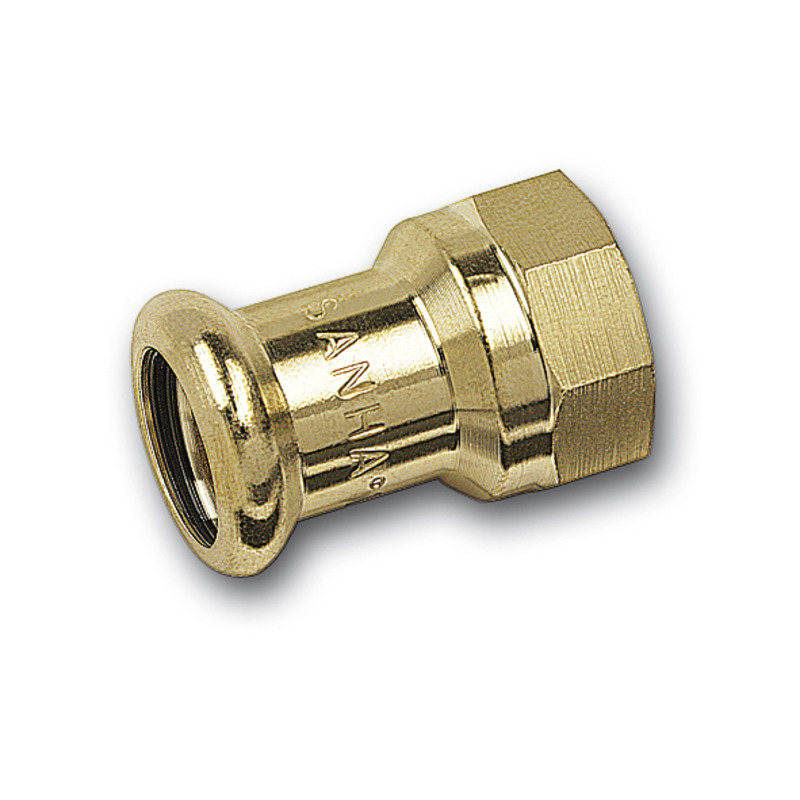

PRESS ADAPTER WITH FT CU 42x1 1/2 SANHA
Product code
1548629
Copper compression fitting system suitable for installation with M, V, and SA profiles up to 54 mm. Pressure class PN16, black EPDM O-ring resistant to glycol. Operating temperature: -30°C to 120°C. Components compatible with EN1057 copper pipes. Threaded parts manufactured from phosphor bronze (CuSi), a zinc and lead-free material. Phosphor bronze components can be installed with Sanha acid-resistant pipes. Leak-free without compression. Always perform a leak test before pressure testing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
ShapeStraight
Outer pipe diameter connection 142 mm
Connection 1Press sleeve
Nominal diameter connection 21 1/2 inch (40)
Product codes
SAPAMN299
HPAC1548629
PLC1548629
GTIN/EAN4021343136276
Manufacturer part number1827042112
Vendor material number1827042112
Basic information
Package measurements (L x W x H)56 x 52 x 52 mm
Package volume0.151 l
Package weight0.252 kg
Base uniteach
Package units1 / 2 / 30
Package contents–
UNSPSC40172612
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.3028
GWP, uniteach
Source for GWP dataEPD
