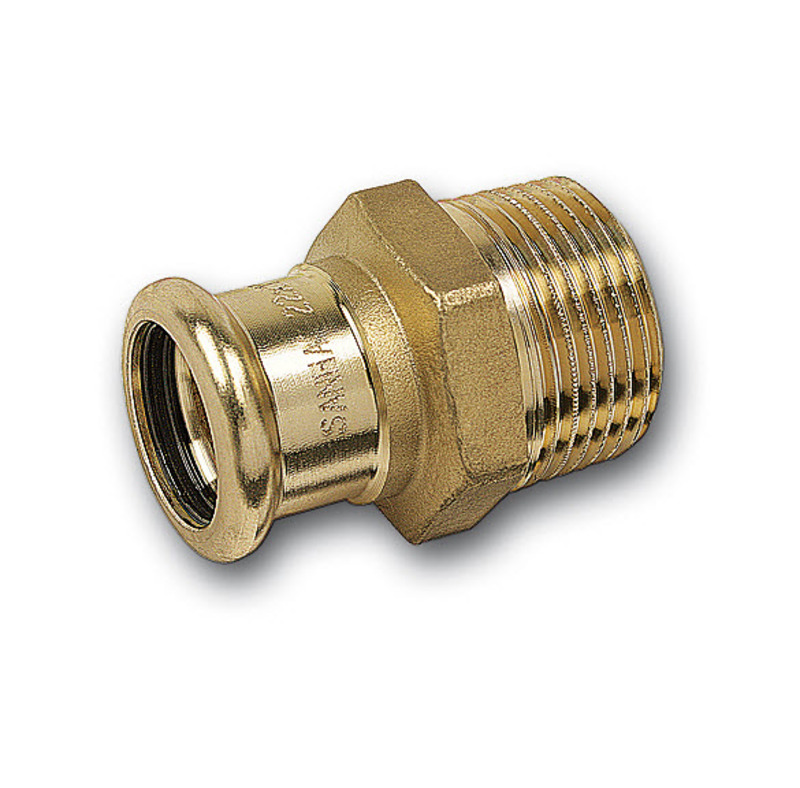

PRESS ADAPTER WITH MT CU 12x1/2 SANHA

Product code
1548553
Copper compression fitting system suitable for installation with M, V, and SA profiles up to 54 mm. Pressure class PN16, black EPDM O-ring resistant to glycol. Operating temperature: -30°C to 120°C. Components compatible with EN1057 copper pipes. Threaded parts manufactured from phosphor bronze (CuSi), a zinc and lead-free material. Phosphor bronze components can be installed with Sanha acid-resistant pipes. Leak-free without compression. Always perform a leak test before pressure testing. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
ShapeBend
Outer pipe diameter connection 112 mm
Connection 1Press sleeve
Nominal diameter connection 21/2 inch (15)

Product codes

SAPAMN266
HPAC1548553
PLC1548553
GTIN/EAN4021343137921
Manufacturer part number182431212
Vendor material number182431212

Basic information

Package measurements (L x W x H)37 x 21 x 21 mm
Package volume0.016 l
Package weight0.031 kg
Base uniteach
Package units1 / 10 / 350
Package contents
UNSPSC40172612
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)0.1603
GWP, uniteach
Source for GWP dataEPD
