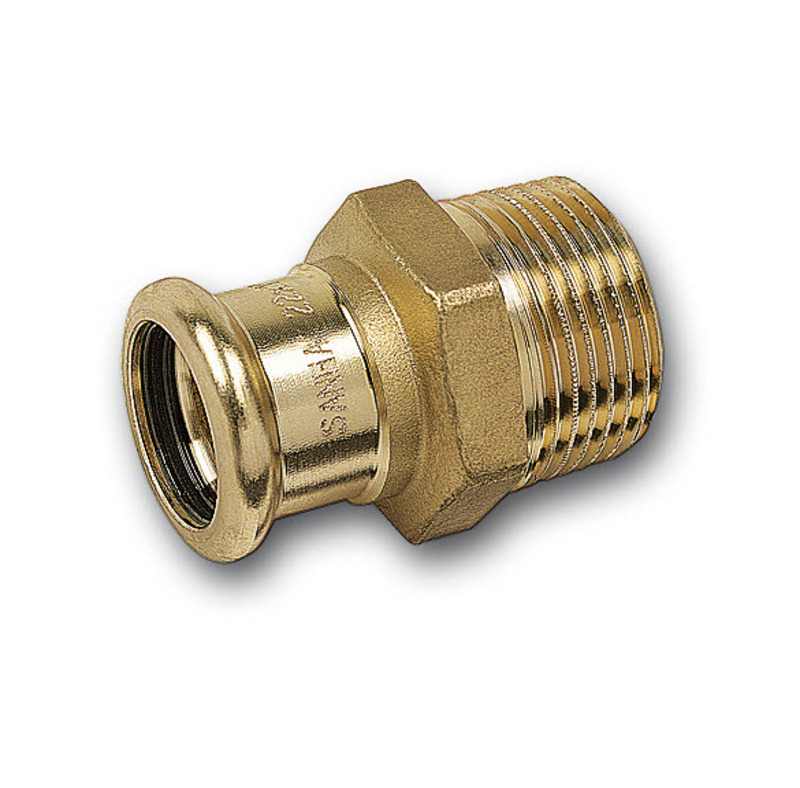

PRESS ADAPTER WITH MT CU 42x1 1/4 SANHA
Product code
1548568
Copper compression fitting system suitable for installation with M, V, and SA profiles up to 54 mm. Pressure class PN16, black EPDM O-ring resistant to glycol. Operating temperature: -30°C to 120°C. Components compatible with EN1057 copper pipes. Threaded parts manufactured from phosphor bronze (CuSi), a zinc and lead-free material. Phosphor bronze components can be installed with Sanha acid-resistant pipes. Leak-free without compression. Always perform a leak test before pressure testing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
ShapeStraight
Outer pipe diameter connection 142 mm
Connection 1Press sleeve
Nominal diameter connection 21 1/4 inch (32)
Product codes
SAPAMN280
HPAC1548568
PLC1548568
GTIN/EAN4021343136047
Manufacturer part number1824342114
Vendor material number1824342114
Basic information
Package measurements (L x W x H)55 x 55 x 60 mm
Package volume0.182 l
Package weight0.178 kg
Base uniteach
Package units1 / 2 / 40
Package contents–
UNSPSC40172612
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.9203
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
