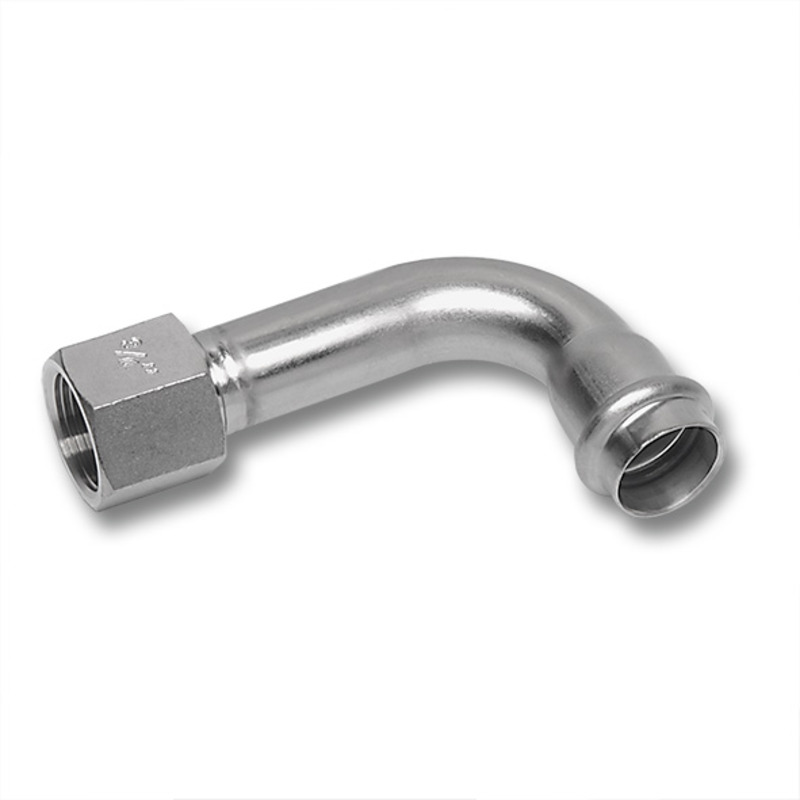

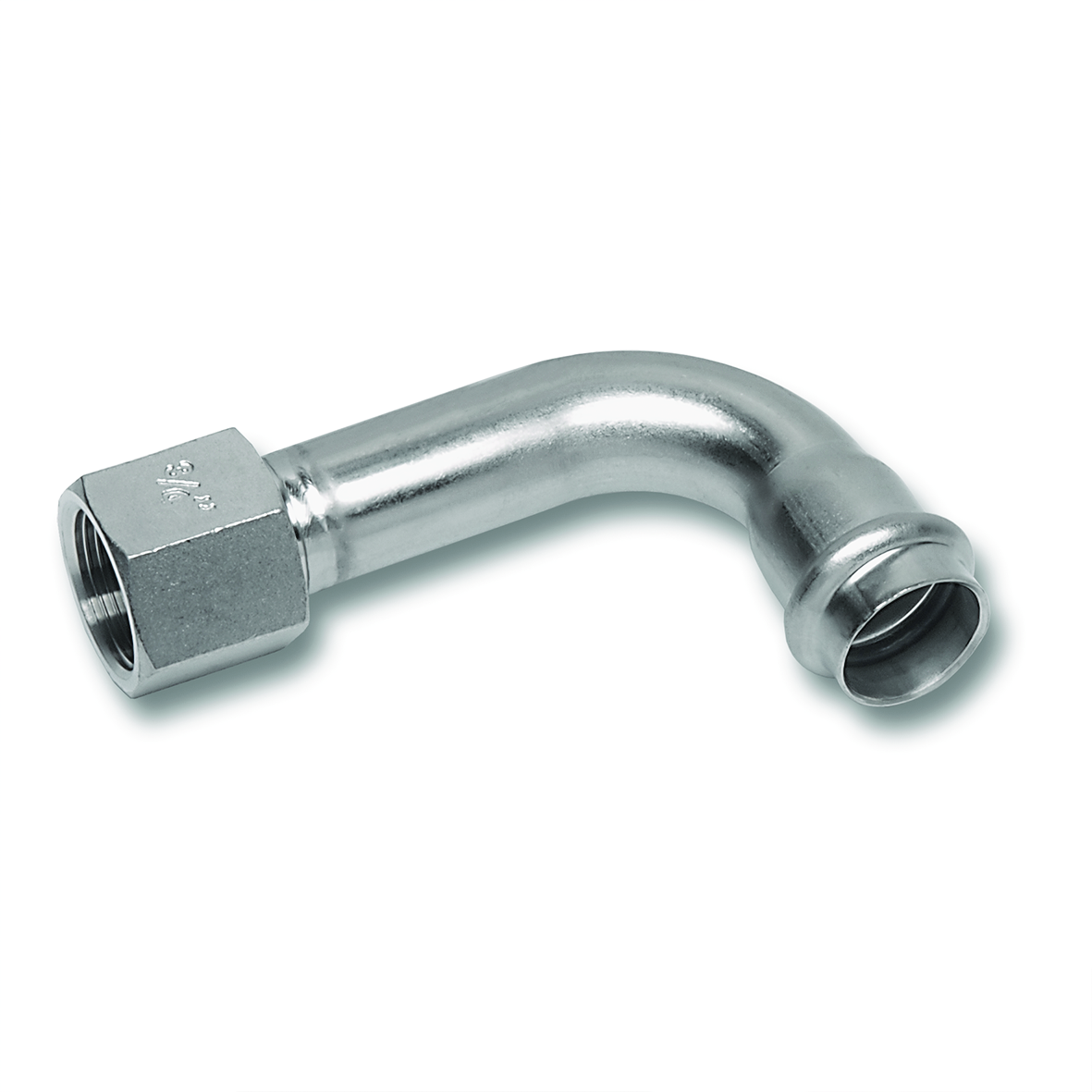

PRESS BEND 90 WITH FT SS 22x3/4 SANHA

The compression fitting of the NiroSan® 9000 series is manufactured from acid-resistant steel. Material: 1.4404/316L or 1.4408 if threaded. O-ring: EPDM, Operating temperature: -30°C to +120°C, maximum operating pressure: 16 bar, Can be compressed on M, V, and SA jaws up to 54 mm, Push&Stay function, leak indicator. Suitable pipes are NiroSan® or NiroTherm pipes. Can be used in industry, ships, sprinkler systems, inert gases, cooling water, heating, and domestic water. Certificates for the NiroSan® compression fitting system include DVGW, DNV GL, LR, Ghost, and ABS. The component is easily identified by the black EPDM seal and the black product marking on the fitting side. This product description is an automated translation of the original Finnish description.
