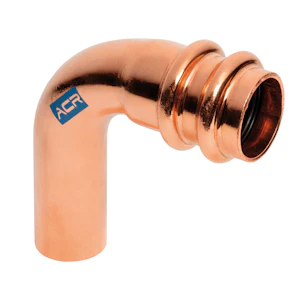

PRESS FITTING SANHA ACR 32001A BEND 90 M/F 1 3/8
Product code
1548085
New, innovative Sanha ACR compression fitting system. Each compression joint in the Sanha ACR system features two O-rings to ensure maximum seal integrity in every connection. Compatible with all conventional HFC and HFO refrigerants as well as propane R290 and butane R600/R600a. Maximum pressure 48 bar. Required compression force 32 kN. Compatible with Milwaukee M18 ONEBLHPT-302C compression tool. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
Material connection 2Copper
ShapeBend
System specificno
Nominal diameter connection 11 3/8 inch
Connection 1Slide end
Nominal diameter connection 21 3/8 inch
Connection 2Press sleeve
Product codes
SAPDMF123
HPAC1548085
PLC1548085
GTIN/EAN4021343509117
Manufacturer part number132001A138
Vendor material number132001A138
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.49 l
Package weight0.165 kg
Base uniteach
Package units2 / 16
Package contents–
UNSPSC40183110
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (1)
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1287
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000289
