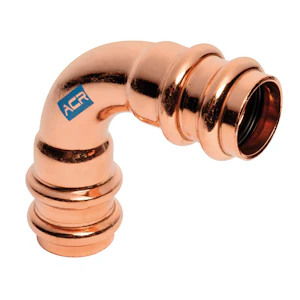

PRESS FITTING SANHA ACR 32002A BEND 90 F/F 7/8
Product code
1548858
New, innovative Sanha ACR compression fitting system. Each compression joint in the Sanha ACR system features two O-rings to ensure maximum seal integrity in every connection. Compatible with all conventional HFC and HFO refrigerants as well as propane R290 and butane R600/R600a. Maximum pressure 48 bar. Required compression force 32 kN. Compatible with Milwaukee M18 ONEBLHPT-302C compression tool. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
ShapeBend
Nominal diameter connection 17/8 inch
Connection 1Insert (push-fitting)
Nominal diameter connection 27/8 inch
Connection 2Insert (push-fitting)
Product codes
SAPDEV270
HPAC1548858
PLC1548858
GTIN/EAN4021343503382
Manufacturer part number132002A78
Vendor material number132002A78
Basic information
Package measurements (L x W x H)105 x 50 x 32 mm
Package volume0.168 l
Package weight0.11 kg
Base uniteach
Package units3 / 42
Package contents–
UNSPSC40183110
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0858
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000289
