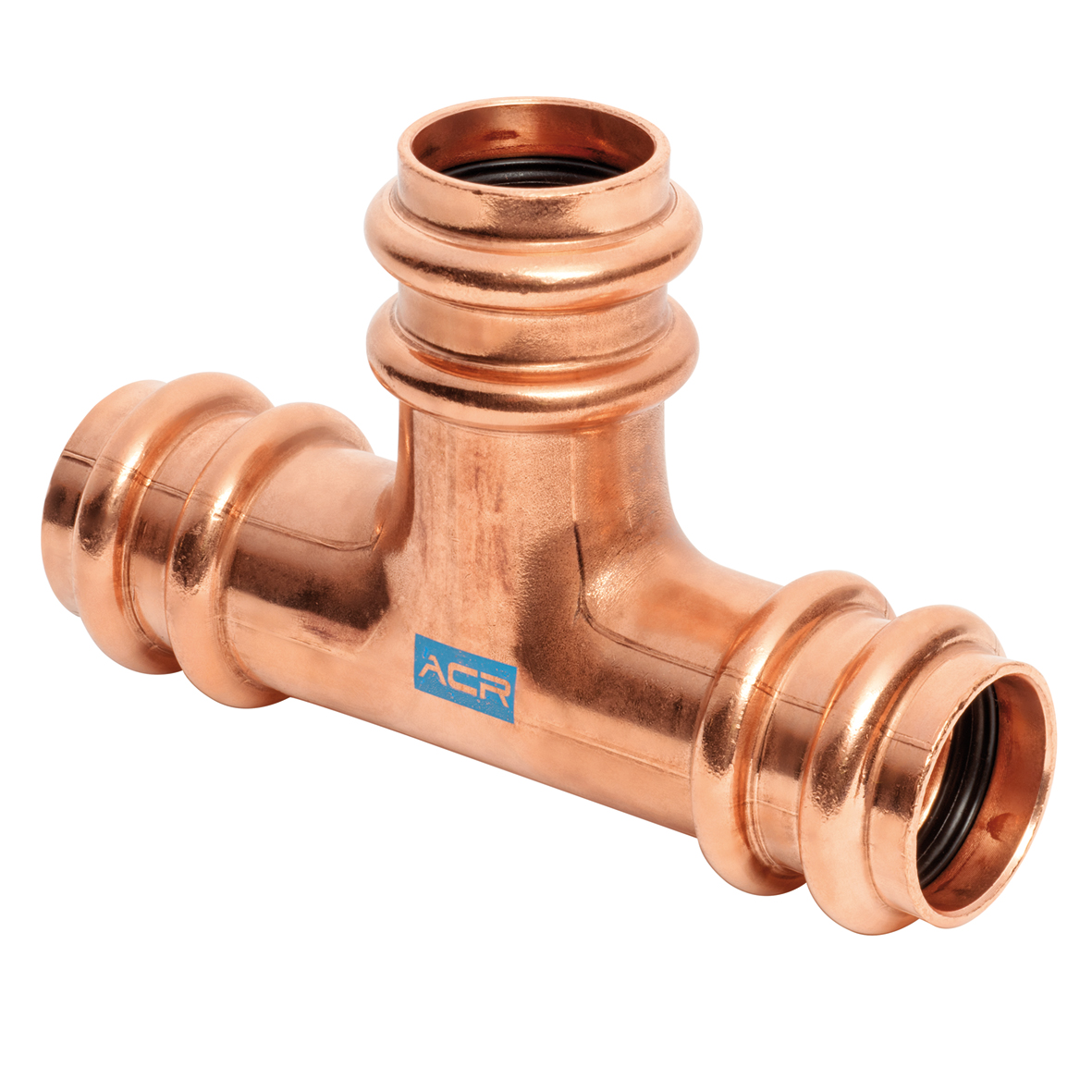

PRESS FITTING SANHA ACR 32130 TEE 1 1/8
Product code
1548872
New, innovative Sanha ACR compression fitting system. Each compression joint in the Sanha ACR system features two O-rings to ensure maximum seal integrity in every connection. Compatible with all conventional HFC and HFO refrigerants as well as propane R290 and butane R600/R600a. Maximum pressure 48 bar. Required compression force 32 kN. Compatible with Milwaukee M18 ONEBLHPT-302C compression tool. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Copper
ModelT-piece
Nominal diameter connection 11 1/8 inch
Connection 1Insert (push-fitting)
Nominal diameter connection 21 1/8 inch
Connection 2Insert (push-fitting)
Nominal diameter connection 31 1/8 inch
Connection 3Insert (push-fitting)
Product codes
SAPDEV278
HPAC1548872
PLC1548872
GTIN/EAN4021343503689
Manufacturer part number132130118
Vendor material number132130118
Basic information
Package measurements (L x W x H)120 x 175 x 40 mm
Package volume0.84 l
Package weight0.25 kg
Base uniteach
Package units1 / 12
Package contents–
UNSPSC40183110
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.195
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000289
